The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
Carl Eric Johnson Co.

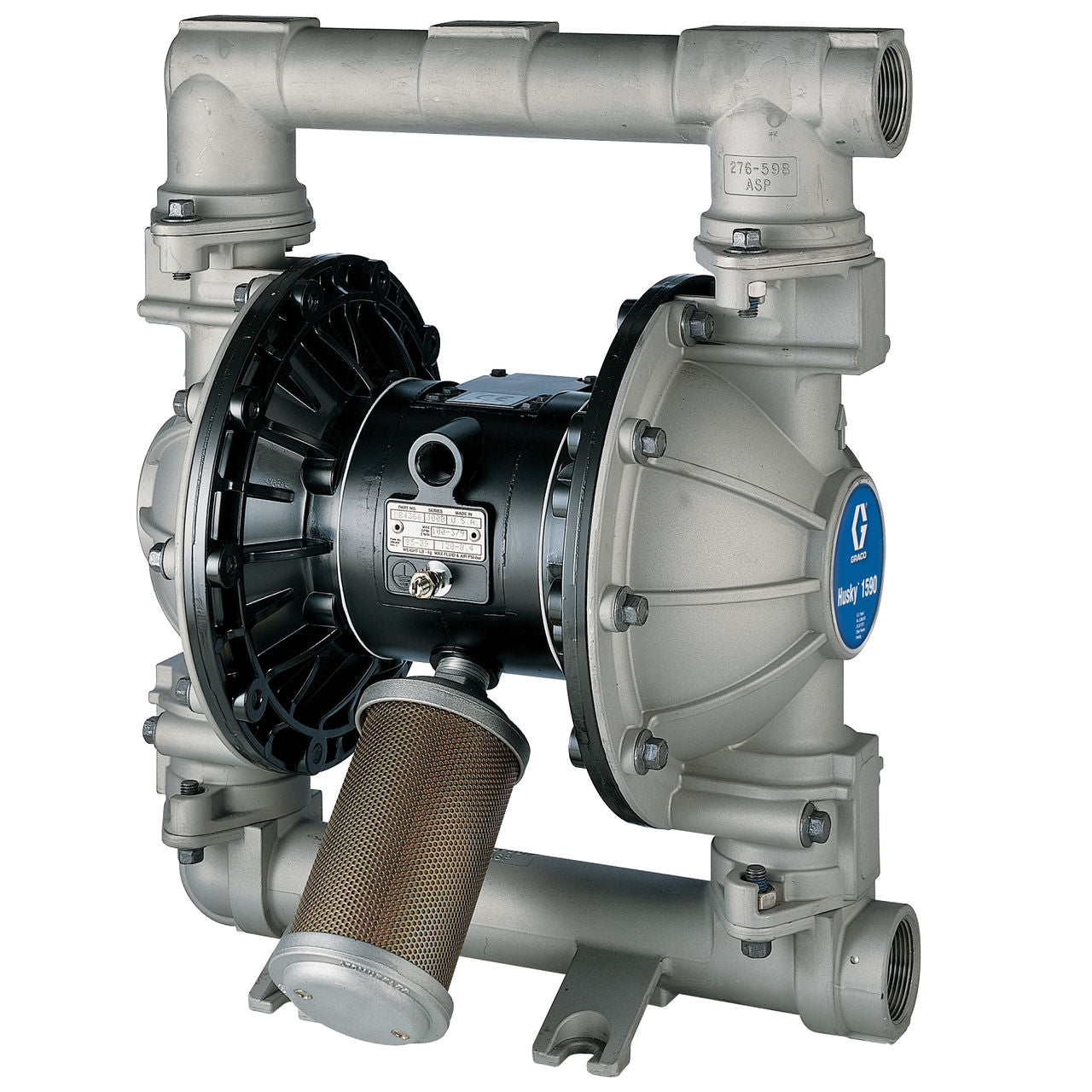

Graco Husky 1590 SS AODD Metal Pump - Part Number DB4311
Graco Husky 1590 SS AODD Metal Pump - Part Number DB4311
Regular price
$5,658.00 USD
Regular price
Sale price
$5,658.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Husky 1590 SS Air Operated Double Diaphragm Metal Pump, SS/PT
Part Number DB4311
- Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
- Expanded material offering to handle endless applications
- Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
- Offered in ATEX configuration.
- 1-1/2 in. (38.1 mm) ANSI end-porting
- High flow - 100 gpm (378 lpm) in a compact, portable size
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- Lube-free operation
- Available in polypropylene, aluminum and stainless steel
- Epoxy-coated air section for tough environmental conditions
Operational Specifications
| UPC Product | 633955641099 |
|---|---|
| Division | PRO |
| Family Code | FAMAOD |
| Country of Origin | US |
| Unit of Measure | EA |
| Height | 25.2 IN |
| Length | 24 IN |
| Width | 19.2 IN |
| Volume | 6.72 FT3 |
| Shipping Weight | 90 LBS |
| HTS Code (US) | 8413500050 |
Technical Specifications
| Air Inlet Size (in) | 1/2 |
|---|---|
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 3.81 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption (SCFM) | 125 |
| Maximum Air Pressure (bar) | 8.27 |
| Maximum Air Pressure (kPa) | 827 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 200 |
| Maximum Flow Rate (L/min) | 379 |
| Maximum Fluid Pressure (bar) | 8.27 |
| Maximum Fluid Pressure (kPa) | 827 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (cm) | 0.4763 |
| Maximum Solid Size (in) | 0.1875 |
| Maximum Solid Size (mm) | 4.763 |
| Model | Husky |
| Series | 1590 |
| Maximum Fluid Pressure (MPa) | 0.827 |
| Maximum Air Pressure (MPa) | 0.827 |
|
Diaphragm Compatible Material |
PTFE |
