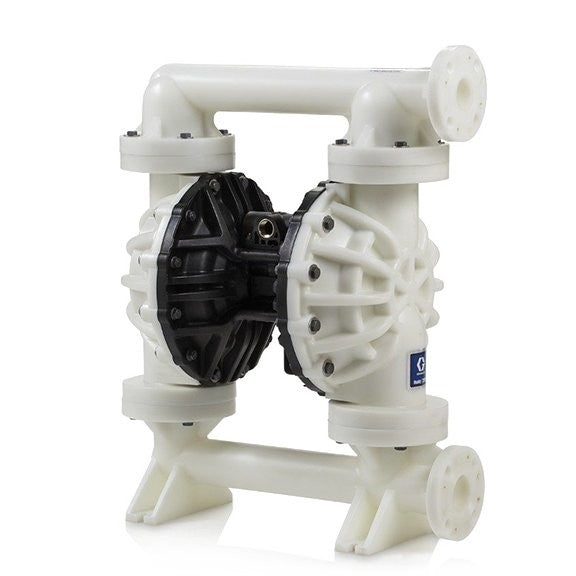

Graco Husky 2200 PP Pump - Part Number 653511

Graco Husky 2200 PP Pump - Part Number 653511

$6,197.00 USD
$6,197.00 USD
Sale Sold out
Shipping calculated at checkout.

Husky 2200 PP Pump, End Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm


Part Number 653511

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.



  • Overall improved air efficiency
  • Highest fluid flow rate in its class
  • Expanded material offering to handle endless applications
  • Available with Overmolded diaphragms (up to 5 times longer diaphragm life)
  • 2 in (50.8 mm) ANSI center and end-porting options available
  • High flow - 200 gpm (757 lpm) in a compact, portable size
  • Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
  • Lube-free operation
  • Available in polypropylene and PVDF



Operational Specifications
UPC Product 633955245174
Division PRO
Family Code FAMAOD
Country of Origin US
Unit of Measure EA
Height 39.6 IN
Length 20.4 IN
Width 31.2 IN
Volume 14.586 FT3
Shipping Weight 118 LBS
HTS Code (US) 8413500050
HTS Code (CA) 8413500020


Technical Specifications
Air Exhaust Port Size (in) 1
Air Exhaust Port Thread Gender Female
Air Inlet Size (in) 3/4
Air Inlet Thread Gender Female
Fluid Inlet Size (cm) 5.08
Fluid Inlet Size (in) 2
Fluid Inlet Size (mm) 50.8
Fluid Outlet Size (cm) 5.08
Fluid Outlet Size (mm) 50.8
Maximum Air Consumption (SCFM) 140
Maximum Air Pressure (bar) 8.6
Maximum Air Pressure (kPa) 860
Maximum Air Pressure (psi) 125
Maximum Cycle Rate (CPM) 125
Maximum Flow Rate (L/min) 757
Maximum Fluid Pressure (bar) 8.6
Maximum Fluid Pressure (kPa) 860
Maximum Fluid Pressure (psi) 125
Maximum Operating Temperature (°C) 66
Maximum Operating Temperature (°F) 150
Maximum Solid Size (cm) 0.9525
Maximum Solid Size (in) 0.375
Maximum Solid Size (mm) 9.525
Minimum Operating Temperature (°C) 0
Minimum Operating Temperature (°F) 32
Minimum Storage Temperature (°C) 0
Minimum Storage Temperature (°F) 32
Model Husky
Overall Height (in) 30.3
Series 2200
Maximum Fluid Pressure (MPa) 0.86
Maximum Air Pressure (MPa) 0.86

Diaphragm Compatible

Material

 PT
