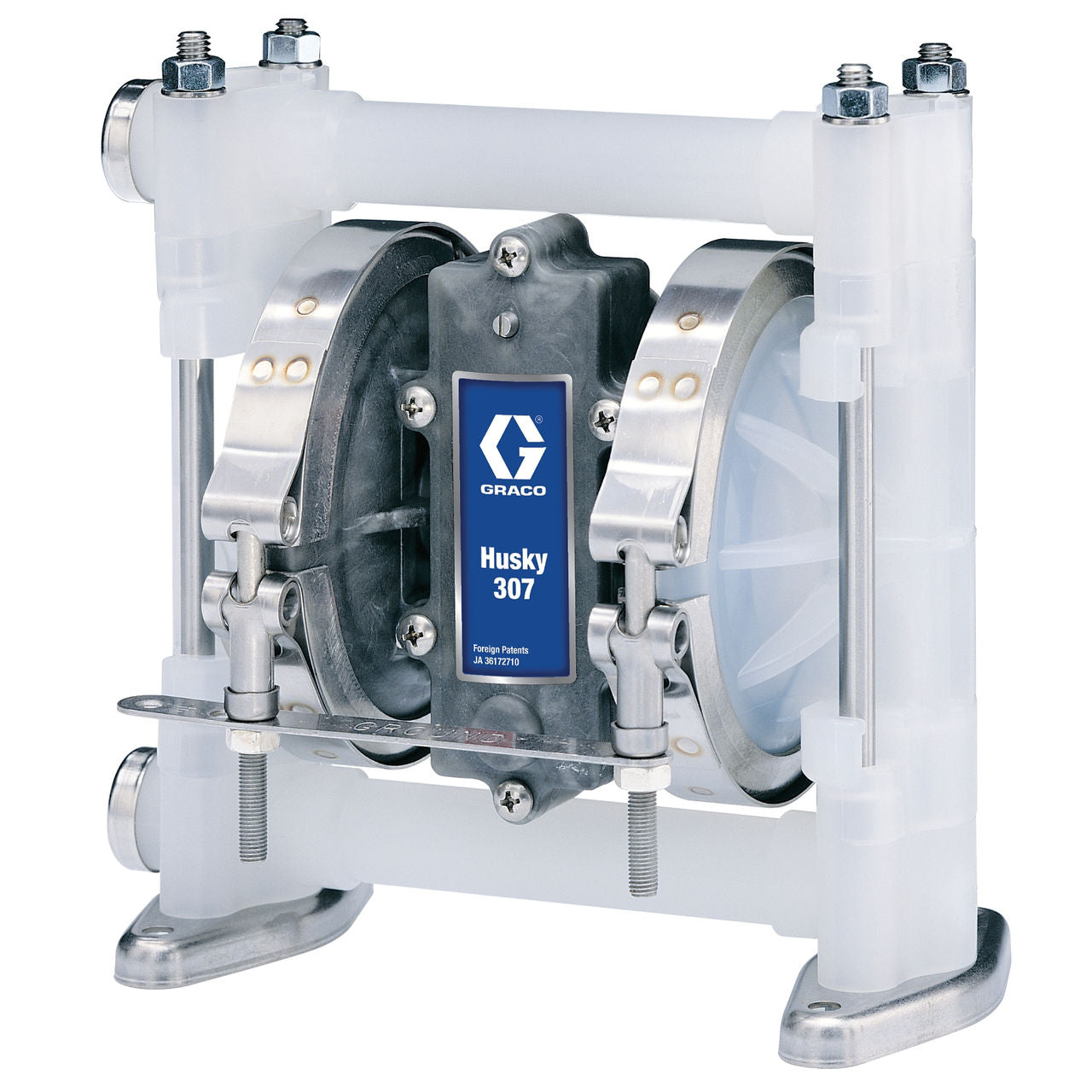

The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.
Typical applications include oil transfer and evacuation, fuel dispense and transfer, windshield wash solution dispense, and water and anti-freeze dispense. Some models UL-approved for use in pumping gasoline and gasoline/alcohol blends up to 10% ethanol, diesel fuel, fuel oil and lubricating oil.
| UPC Product | 633955640986 |
|---|---|
| Division | PRO |
| Family Code | FAMAOD |
| Country of Origin | US |
| Unit of Measure | EA |
| Height | 8.75 IN |
| Length | 8.95 IN |
| Width | 6.75 IN |
| Volume | .306 FT3 |
| Shipping Weight | 5.51 LBS |
| HTS Code (US) | 8413500050 |
| HTS Code (CA) | 8413500020 |
| Air Exhaust Port Size (in) | 3/8 |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 0.9525 |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Size (mm) | 9.525 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption (SCFM) | 5.5 |
| Maximum Air Pressure (bar) | 7 |
| Maximum Air Pressure (kPa) | 700 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 330 |
| Maximum Flow Rate (L/min) | 24.6 |
| Maximum Fluid Pressure (bar) | 7 |
| Maximum Fluid Pressure (kPa) | 700 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Solid Size (cm) | 0.1588 |
| Maximum Solid Size (in) | 0.0625 |
| Maximum Solid Size (mm) | 1.5875 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Overall Height (in) | 8.13 |
| Series | 307 |
| Maximum Fluid Pressure (MPa) | 0.7 |
| Maximum Air Pressure (MPa) | 0.7 |
|
Diaphragm Compatible Material |
PTFE |
