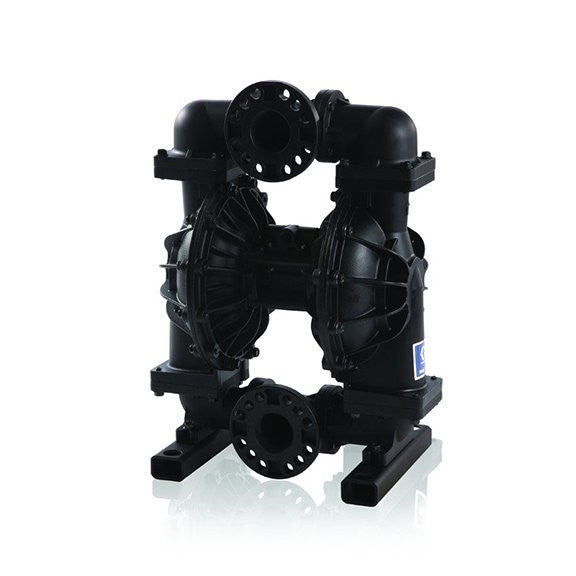

• Graco 652036 Husky 3300 3-inch Poly Diaphragm Pump
1 1

Carl Eric Johnson Co.

Graco Husky 3300 (ANSI/DIN/NPT) Al Pump - Part Number 652036

Graco Husky 3300 (ANSI/DIN/NPT) Al Pump - Part Number 652036

$4,055.00 USD
$4,055.00 USD
Sale Sold out
Shipping calculated at checkout.

Husky 3300 (ANSI/DIN/NPT) Al Pump, AL Center Section with BN Seals, SP Seats, SP Balls & SP Diaphragm


Part Number 652036

The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.



  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • Offered in ATEX configuration.
  • Expanded material offering to handle numerous applications
  • Flow rates up to 300 gpm (1,135 lpm)
  • Modular stall-resistant air valve design
  • Complete 3 inch family of diaphragm pumps available in aluminum or polypropylene center sections
  • Heavy-duty construction



Operational Specifications
UPC Product 633955232327
Division PRO
Family Code FAMAOD
Country of Origin US
Unit of Measure EA
Height 39.6 IN
Length 20.4 IN
Width 31.2 IN
Volume 14.586 FT3
Shipping Weight 178 LBS
HTS Code (US) 8413500050


Technical Specifications
Air Exhaust Port Size (in) 1
Air Exhaust Port Thread Gender Female
Air Inlet Size (in) 3/4
Air Inlet Thread Gender Female
Fluid Inlet Size (cm) 7.62
Fluid Inlet Size (in) 3
Fluid Inlet Size (mm) 76.2
Fluid Inlet Thread Gender Female
Fluid Outlet Size (cm) 7.62
Fluid Outlet Size (mm) 76.2
Fluid Outlet Thread Gender Female
Maximum Air Consumption (SCFM) 335
Maximum Air Pressure (bar) 8.6
Maximum Air Pressure (kPa) 860
Maximum Air Pressure (psi) 125
Maximum Cycle Rate (CPM) 103
Maximum Flow Rate (L/min) 1136
Maximum Fluid Pressure (bar) 8.6
Maximum Fluid Pressure (kPa) 860
Maximum Fluid Pressure (psi) 125
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Maximum Solid Size (cm) 1.27
Maximum Solid Size (in) 0.5
Maximum Solid Size (mm) 12.7
Minimum Operating Temperature (°C) 0
Minimum Operating Temperature (°F) 32
Minimum Storage Temperature (°C) 0
Minimum Storage Temperature (°F) 32
Model Husky
Overall Height (in) 32.56
Series 3300
Maximum Fluid Pressure (MPa) 0.86
Maximum Air Pressure (MPa) 0.86
Diaphragm Compatible Material Santoprene
