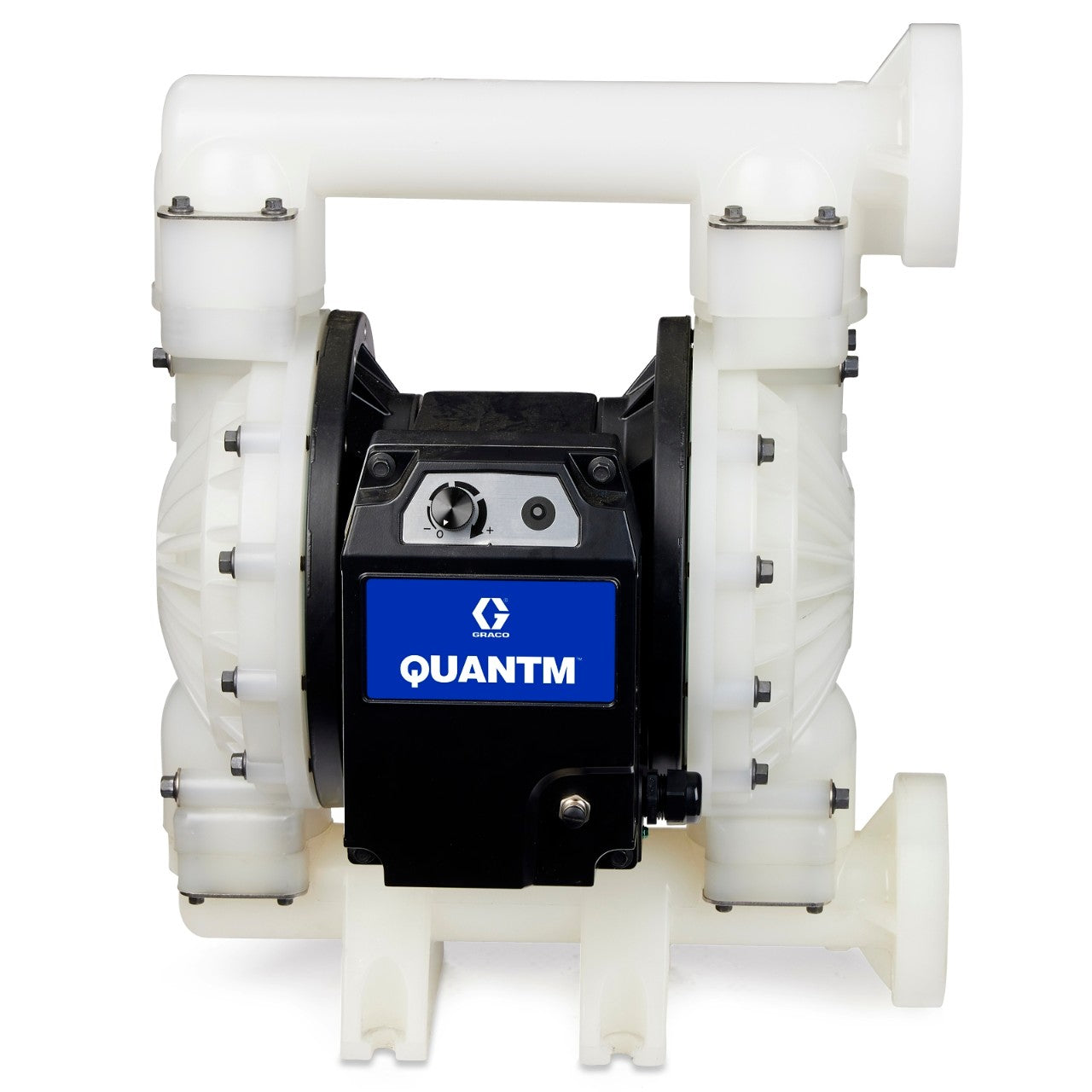

• Graco TE120-0023 QUANTM i120 2-inch Electric Diaphragm Pump, Santoprene
1 1

Carl Eric Johnson Co.

Graco QUANTM i120, Polypropylene Electric Diaphragm Pump Part Number

Graco QUANTM i120, Polypropylene Electric Diaphragm Pump Part Number

$9,396.00 USD
$9,396.00 USD
Sale Sold out
Shipping calculated at checkout.

QUANTM i120, 2"Flange, Polypropylene Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, SP Ball, SP Diaphragm


Part Number TE120-0023

QUANTM is a revolutionary electric diaphragm pump that lowers costs, saves energy, and maximizes reliability. Its seal-less, self-priming design delivers smooth flow and stalls under pressure to prevent downtime. Built with chemical-resistant polypropylene, it handles most chemicals, detergents, sump evacuation, and high/low pH applications. With up to 8x more torque at low speeds and a simple plug-and-play setup, QUANTM is a quieter, more efficient replacement for pneumatic pumps or a smart choice for new installations.



    Revolutionary Design

    ·       Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature

    ·       Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump

    ·       Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback

    ·       Quiet operation reduces plant noise and improves employee safety and health

    ·       Smart pump control provides more accurate flow set points and built-in I/O



    Efficient Electric Motor

    ·       Powder-coated aluminum electric drive

    ·       240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug

    ·       Non-hazardous



    Materials of Construction

    ·       Polypropylene fluid section with end flange

    ·       Internal components include Santoprene seat, Santoprene ball, Santoprene diaphragm and PTFE manifold o-ring



    Operational Specifications
    UPC Product 769946322170
    Division PRO
    Family Code FAMEOD
    Country of Origin US
    Unit of Measure EA
    Height 32 IN
    Length 23.75 IN
    Width 18.5 IN
    Volume 8.126 FT3
    Shipping Weight 125 LBS
    HTS Code (US) 8413500050
    HTS Code (CA) 8413500020


    Technical Specifications
    Fluid Inlet Size (in) 2
    Fluid Inlet Size (mm) 51
    Fluid Inlet Thread Gender Flange
    Fluid Outlet Size (mm) 50.8
    Fluid Outlet Thread Gender Flange
    Maximum Amperage (A) 7.5
    Maximum Flow Rate (L/min) 454
    Maximum Fluid Pressure (bar) 4.14
    Maximum Fluid Pressure (kPa) 414
    Maximum Fluid Pressure (psi) 60
    Maximum Solid Size (in) 0.25
    Maximum Solid Size (mm) 6.4
    Model QUANTM
    Overall Height (in) 25.7
    Series i120
    Maximum Ambient Temperature (°F) 104
    Maximum Fluid Operating Temperature (°C) 66
    Minimum Fluid Operating Temperature (°C) 0
    Maximum Fluid Operating Temperature (°F) 150
    Minimum Fluid Operating Temperature (°F) 32
    Fluid Section Polypropylene, End Flange
    Maximum Ambient Temperature (°C) 40
    Cord Length (m) 4.57
    Cord Length (ft) 15
    Fluid Passage Size (in) 2
    Fluid Passage Size (mm) 51
    Configuration Code QTE-PPFC1SPSPSPPTP200
