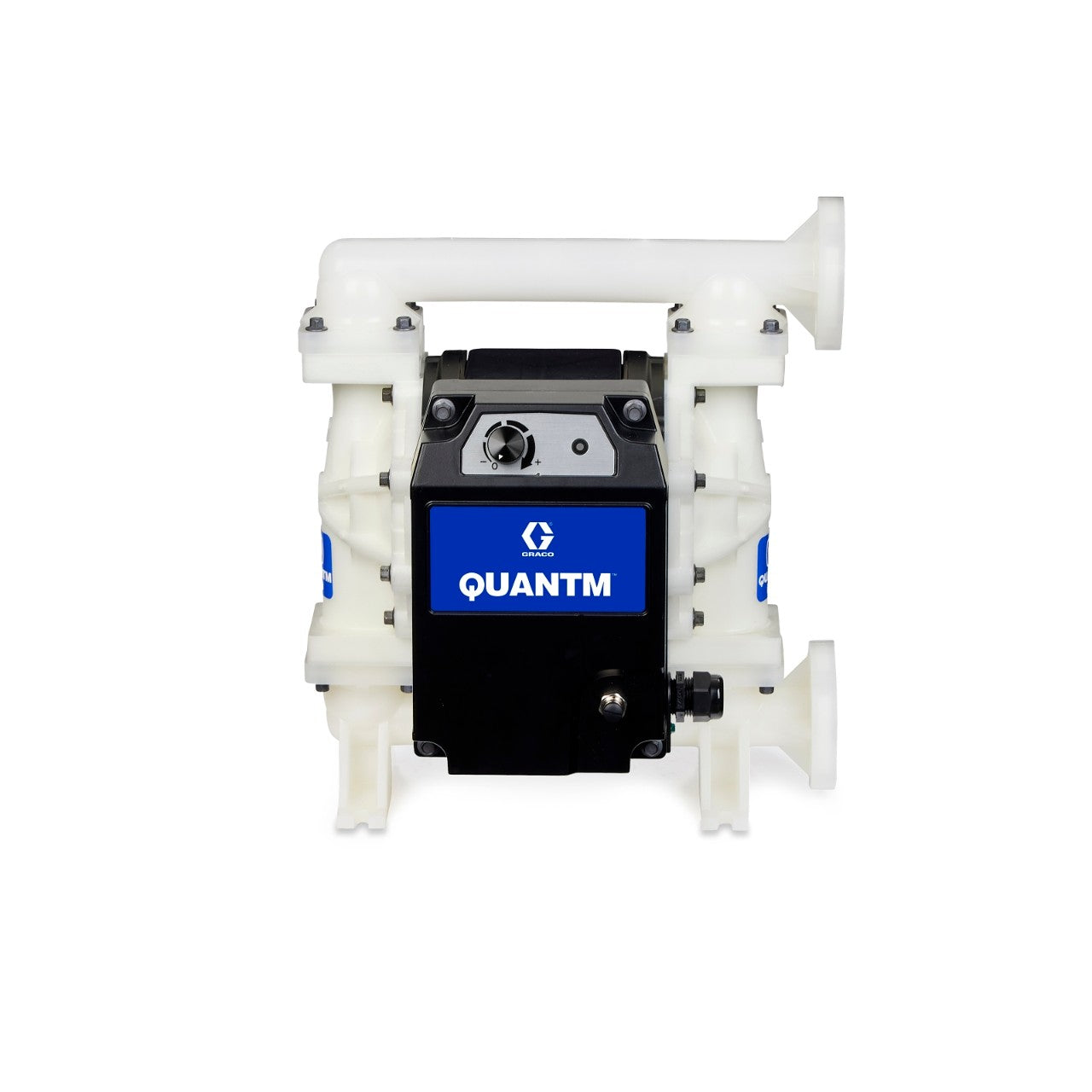

QUANTM i30, 1"Flange, Polypropylene Electric Diaphragm Pump, 120 VAC 1Ph, AL Center, PP Seat, PT Ball, PS Diaphragm

Part Number TE30-0101

Revolutionary Design

·       Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature

·       Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump

·       Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback

·       Quiet operation reduces plant noise and improves employee safety and health

·       Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

·       Powder-coated aluminum electric drive

·       120 VAC 1Ph motor with 15 ft cord and NEMA 5-15 plug

·       Non-hazardous

Materials of Construction

·       Polypropylene fluid section with end flange

·       Internal components include Polypropylene seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring
