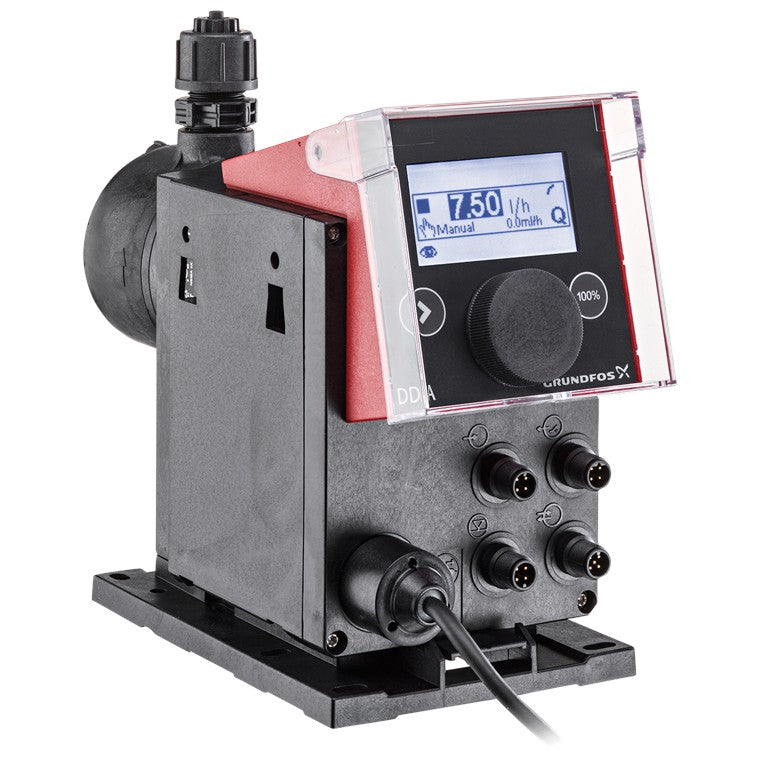

Grundfos 97722539 DDA 12-10 FCM SMART Digital Dosing Pump

The Grundfos 97722539 (DDA 12-10 FCM) is a SMART digital diaphragm dosing pump designed for accurate, reliable metering in water treatment and industrial dosing applications. Featuring integrated Flow Control and Flow Measurement technology, it continuously verifies actual flow and self-adjusts to maintain the target output. Built with a durable PVC head, ceramic valves, and FKM gasket materials, it’s engineered for dependable performance in demanding environments.

Model: DDA 12-10 FCM-PVC/V/C-F-31U7U7BG
Product Number: 97722539

Pump Type: SMART digital diaphragm dosing pump with integrated brushless motor and intelligent control
Control Variant: FCM (Flow Control + Flow Measurement with AutoFlowAdapt)

Max Flow: 3.17 GPH (12 L/hr)
Min Flow: ~12 mL/hr
Max Pressure: ~145 psi (10 bar)
Turn-Down Ratio: ~1:1000

Pump Head Material: PVC (Polyvinyl Chloride)
Gasket Material: FKM (Viton)
Valve Balls: Ceramic

Control Inputs: Manual, Pulse, 0/4–20 mA, External Stop, Level Signals
Display: Multi-color graphical LC display
Power Supply: 100-240 VAC, 50/60 Hz

Features: Flow verification & measurement, AutoFlowAdapt, auto-deaeration, SlowMode anti-cavitation, resettable total dosed volume counter
