Grundfos 97722547 SMART Digital Dosing Pump

Name: Grundfos 97722547 SMART Digital Dosing Pump
Brand: Carl Eric Johnson Co.
Price: 3655.00 USD
Availability: InStock

$3,655.00 USD

Sale Sold out

Shipping calculated at checkout.

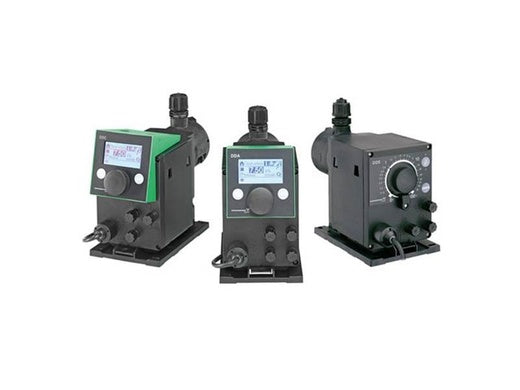

The Grundfos 97722547 (DDA 12-10 FCM-PV/E/C-F-31U7U7BG) is a SMART digital diaphragm dosing pump engineered for precise, reliable metering in advanced industrial and process applications. Featuring flow measurement and adaptive control technology, this pump delivers accurate dosing performance and enhanced system diagnostics for demanding water treatment and metering tasks.

Model

DDA 12-10 FCM-PV/E/C-F-31U7U7BG (Grundfos 97722547)

Pump Type

SMART digital variable-speed diaphragm dosing pump

Control Variant

FCM (Flow Control + Flow Measurement + Adaptive control)

Maximum Flow

~3.17 GPH (≈12 L/hr)

Minimum Flow

~12 mL/hr

Maximum Pressure

~145 psi (10 bar)

Turn-Down Ratio

Up to 1:3000

Pump Head Material

PVDF (Polyvinylidene fluoride)

Gasket Material

EPDM

Valve Balls

Ceramic

Control Inputs

Manual, Pulse, Analog 0/4-20 mA, Level & External Stop

Display

Graphical LC display with intuitive menu

Power Supply

100-240 VAC, 50/60 Hz

Features

Auto deaeration, SlowMode anti-cavitation, flow verification, adaptive dosing

Approvals

CE, CSA-US, NSF61, RCM (typical)

Applications

Water treatment, industrial dosing, cooling tower systems, process applications
