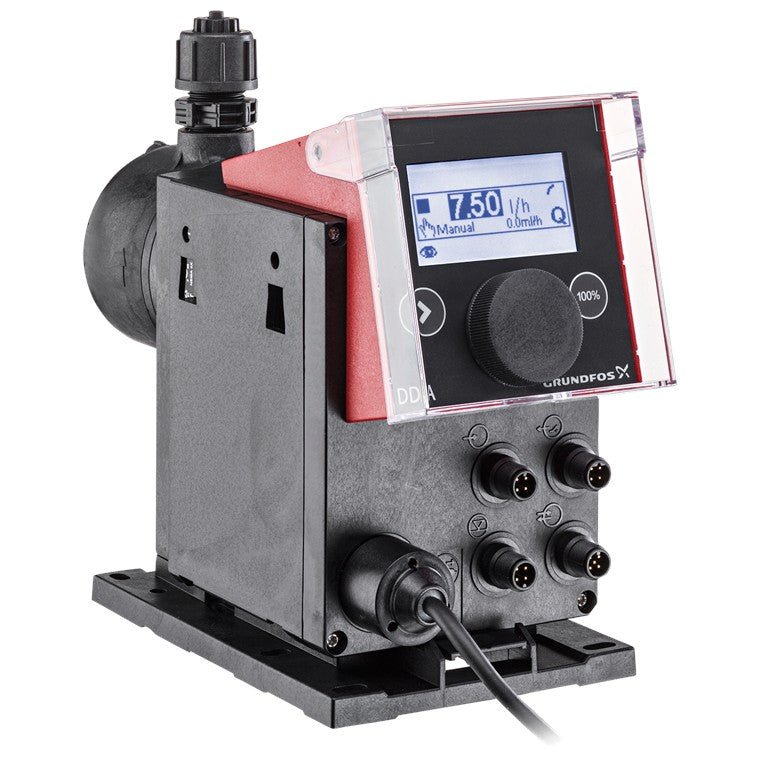

Grundfos 97722557 SMART Digital Dosing Pump

The Grundfos 97722557 (DDA 12-10 FCM) is a precision SMART Digital diaphragm dosing pump built for reliable performance in water treatment and industrial applications. With integrated Flow Control and Flow Measurement technology, it ensures accurate, verified dosing and consistent output.

Engineered with a brushless motor drive and durable PVDF construction, it delivers dependable, high-accuracy metering in demanding environments.

Model: DDA 12-10 FCM-PV/T/C
Product Number: 97722557

Max Flow: 3.17 GPH (12 L/hr)
Max Pressure: 150 PSI (10 bar)
Turn-Down Ratio: Up to 1:1000

Materials: PVDF pump head, PTFE gaskets, ceramic valve balls

Control: Manual, Pulse, 0/4–20 mA, Timer/Batch
Power Supply: 100–240 VAC, 50/60 Hz

Features: Flow Measurement & AutoFlowAdapt, auto-deaeration, diagnostic monitoring
