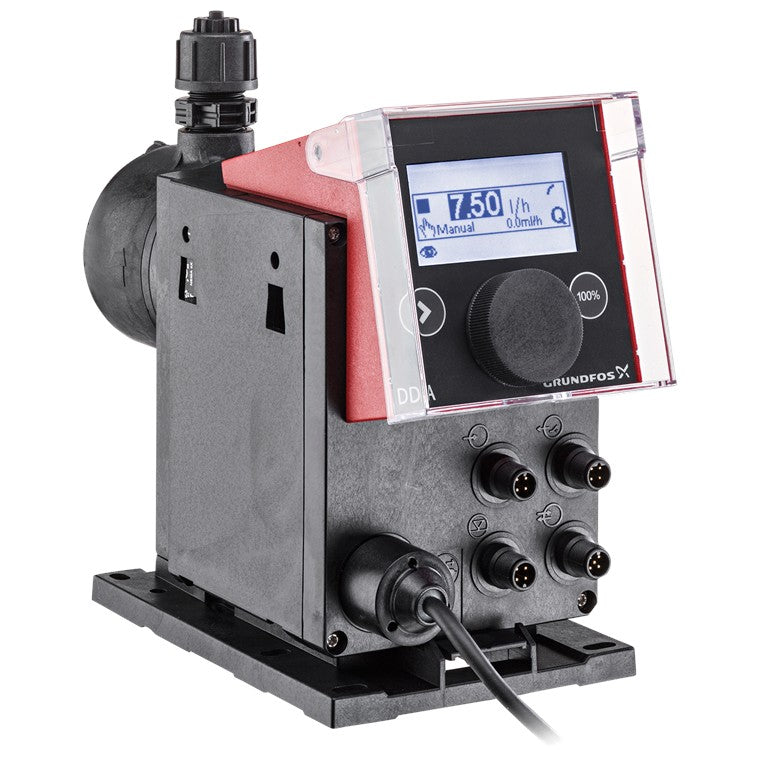

Grundfos 97722642 DDA Digital Dosing Pump

The Grundfos 97722642 (DDA 17-7 FCM) is a compact SMART Digital diaphragm dosing pump built for demanding industrial and process water applications. With an internal brushless motor, Flow Control + Flow Measurement (FCM) technology, and durable PVC/chemical-resistant wetted components, it delivers accurate dosing up to 4.5 GPH at 100 PSI with adaptive performance and enhanced diagnostics.

Model: DDA 17-7 FCM-PVC/V/C-F-31U7U7BG

Product Number: 97722642

Max Flow: ~4.5 GPH (17 L/hr)

Max Pressure: ~100 PSI (7 bar)

Pump Head Material: PVC

Gasket Material: FKM (Viton)

Valve Balls: Ceramic

Control: Integrated FCM (Flow Control + Flow Measurement)

Power Supply: 100–240 VAC, 50/60 Hz

Reliable, digitally controlled dosing solution for water treatment and industrial metering tasks.
