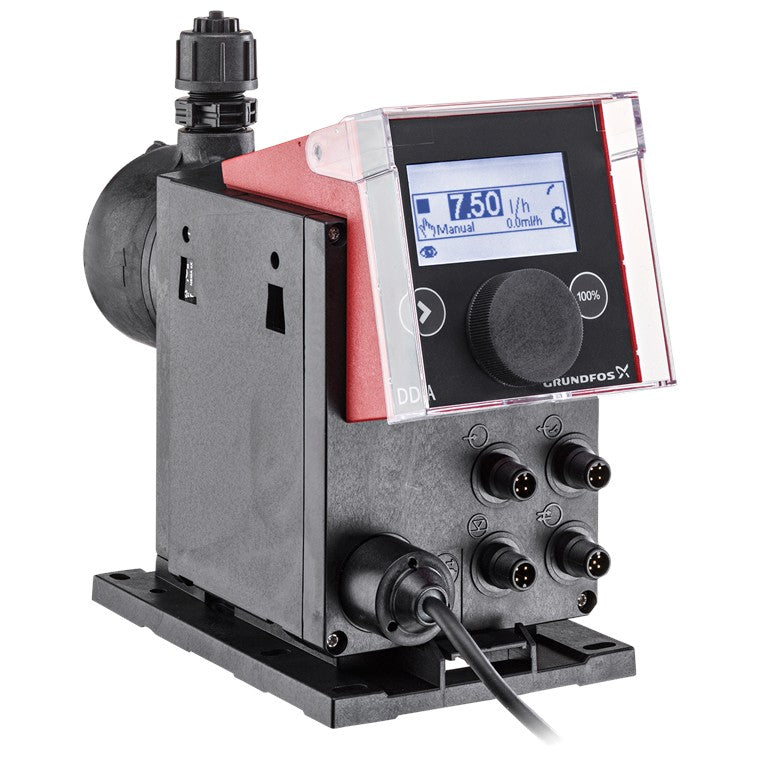

Grundfos 97722659 DDA Digital Dosing Pump

The Grundfos 97722659 (DDA 17-7 FCM) is a compact SMART Digital diaphragm dosing pump built for reliable industrial and process water applications. Featuring Flow Control + Flow Measurement (FCM) technology and a durable PVDF/PTFE wetted head, it delivers accurate dosing up to 4.5 GPH at 100 PSI.

Model: DDA 17-7 FCM-PV/T/C-F-31I004BG

Product Number: 97722659

Max Flow: ~4.5 GPH (17 L/hr)

Max Pressure: ~100 PSI (7 bar)

Pump Head Material: PVDF

Gasket Material: PTFE

Valve Ball Material: Ceramic

Control: Integrated FCM (Flow Control + Flow Measurement)

Power Supply: 100–240 VAC, 50/60 Hz

Features: Accurate digital dosing with adaptive flow control, auto-deaeration, and advanced diagnostics.
