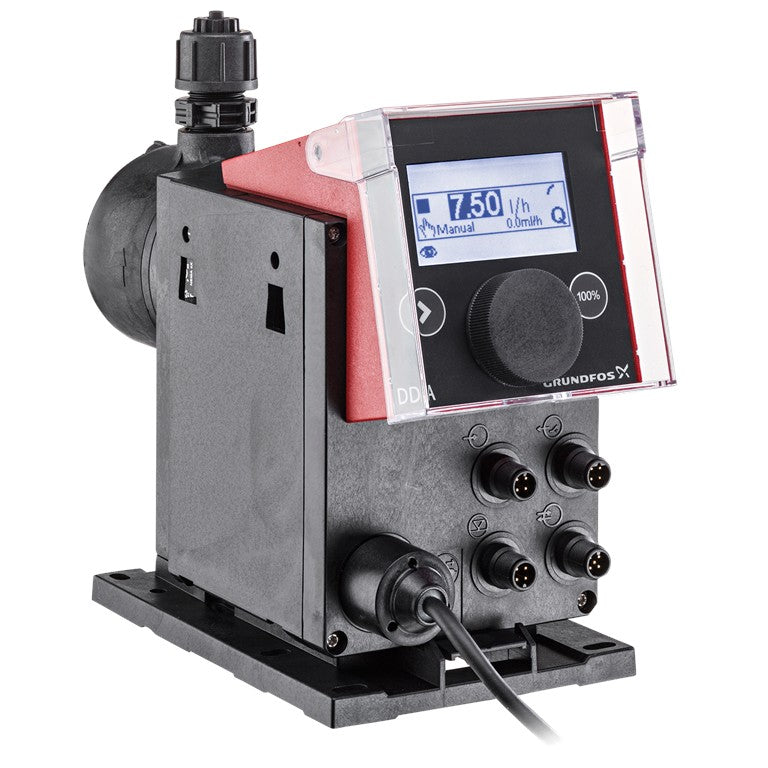

Grundfos 97722692 DDA Digital Dosing Pump 30-4 AR

The Grundfos 97722692 (DDA 30-4 AR) is a compact SMART digital diaphragm dosing pump designed for reliable industrial and process metering. With a robust PVDF head, PTFE gasket and ceramic valve balls, it delivers accurate dosing up to ~8 GPH at ~60 PSI, featuring intuitive digital control and dependable performance in demanding applications.

Model: DDA 30-4 AR-PV/T/C-F-31U7U7BG

Product Number: 97722692

Max Flow: ~8 GPH (~30 L/hr)

Max Pressure: ~60 PSI (~4 bar)

Pump Head Material: PVDF

Gasket Material: PTFE

Valve Ball Material: Ceramic

Connection Type: Typical NPT/hose adaptable

Power Supply: 100–240 VAC, 50/60 Hz

Control: Digital AR variant with relay & analog input support (standard digital dosing features)
