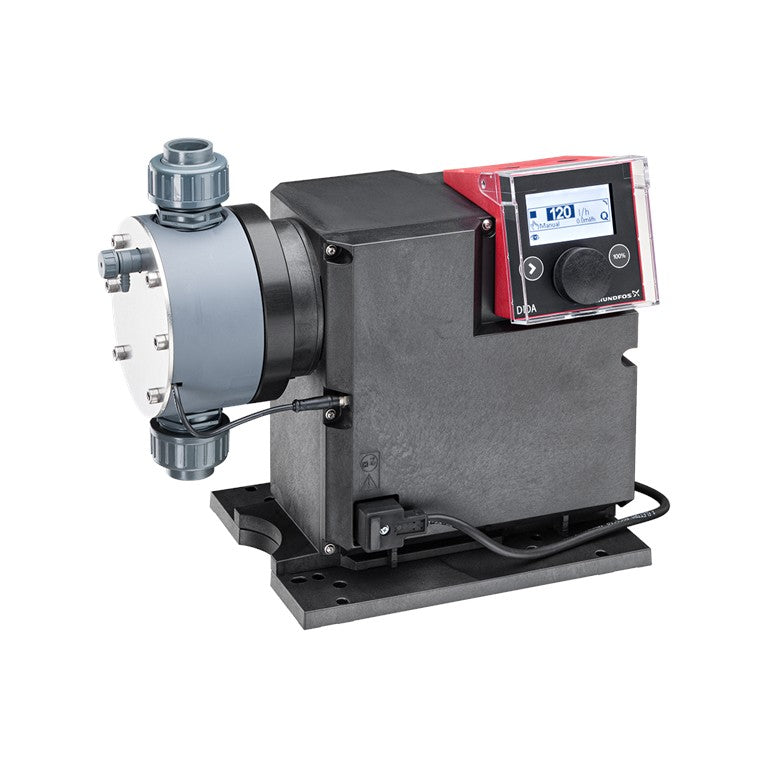

Grundfos 99159464 DDA 60-10 FCM Digital Dosing Pump

The Grundfos 99159464 (DDA 60-10 FCM) is a high-capacity SMART digital diaphragm dosing pump engineered for complex industrial and process applications. Featuring Flow Control + Flow Measurement (FCM) technology and a chemical-resistant PVDF wetted head, it delivers accurate dosing up to 15.85 GPH at 145 PSI with advanced adaptive control and monitoring.

Model: DDA 60-10 FCM-PV/T/C-F-31A7A7BG

Product Number: 99159464

Max Flow: ~15.85 GPH (≈60 L/hr)

Max Pressure: ~145 PSI (≈10 bar)

Pump Head Material: PVDF (chemical-resistant)

Gasket Material: PTFE (chemically resistant)

Valve Ball Material: Ceramic

Connection Size: 3/4″ NPT male (inlet & outlet)

Power Supply: 100–240 VAC, 50/60 Hz

Control: FCM (Flow Control + Flow Measurement) digital dosing with adaptive AutoFlowAdapt and diagnostic monitoring
