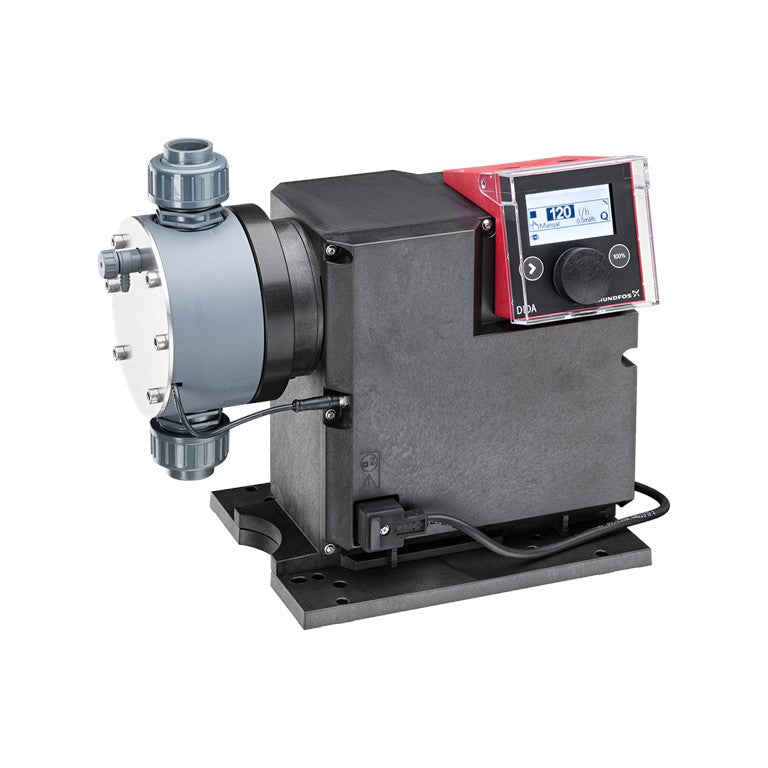

Grundfos 99159465 DDA 60-10 FCM Digital Dosing Pump

The Grundfos 99159465 (DDA 60-10 FCM) is a high-capacity SMART digital diaphragm dosing pump designed for demanding industrial and process applications. Featuring Flow Control + Flow Measurement (FCM) with adaptive regulation and a chemical-resistant PVDF head, it provides precise dosing up to 15.85 GPH at 145 PSI.

Model: DDA 60-10 FCM-PV/V/C-F-31A7A7BG

Product Number: 99159465

Max Flow: ~15.85 GPH (60 L/hr)

Max Pressure: ~145 PSI (10 bar)

Pump Head Material: PVDF (chemical-resistant)

Gasket Material: FKM (Viton)

Valve Ball Material: Ceramic

Connection: 3/4″ NPT male inlet & outlet

Power Supply: 100–240 VAC, 50/60 Hz

Control: Integrated FCM (Flow Control + Flow Measurement) digital dosing with adaptive monitoring
