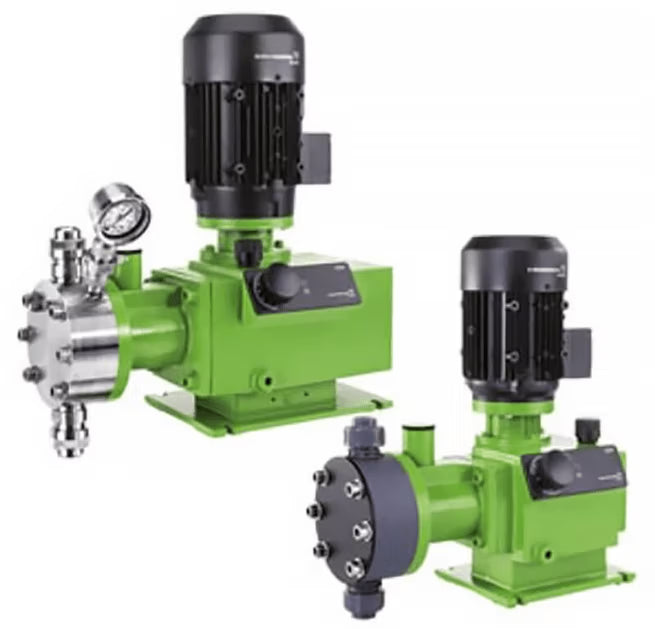

Grundfos DMH 24-10 Hydraulic Dosing Pump — 99949662

Grundfos DMH 24-10 Hydraulic Dosing Pump — 99949662

Regular price $3,285.00 USD
Regular price Sale price $3,285.00 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

The Grundfos 99949662 is a heavy-duty hydraulically driven diaphragm metering pump from the DMH series, built for dependable performance in demanding industrial and process dosing applications. Designed without an integrated motor, it’s versatile for custom motor configurations and rugged environments.



Model DMH 24-10 B-PVC/V/C-X-F1A9A9XAG (Grundfos 99949662)
Pump Type Hydraulically driven diaphragm dosing pump (no motor included)
Maximum Flow ~7.66 GPH (29 L/hr)
Maximum Pressure 145 psi (10 bar)
Stroke Speed Up to 75 SPM
Pump Head Material PVC (Liquid-wetted parts)
Gasket Material FKM (Viton)
Valve Balls Ceramic
Connection Size 1/2" MNPT (Inlet & Discharge)
Control Variant Basic (manual) — no built-in control panel
Motor External motor required (not included)
Applications Dosing and metering in process water, industrial, and chemical systems
