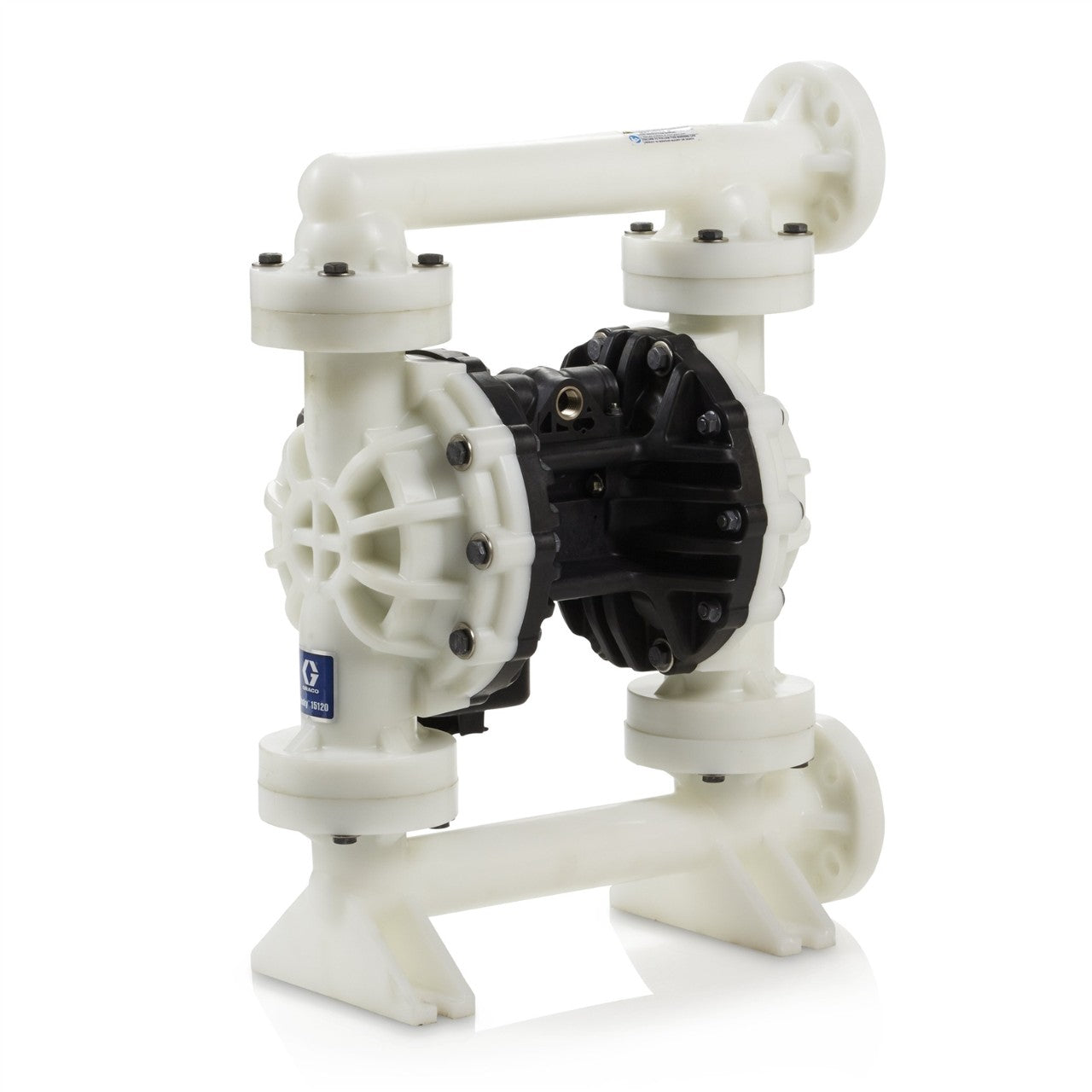

Husky 15120 PP Pump - Part Number 654528

Husky 15120 PP Pump - Part Number 654528

$3,541.00 USD
$3,541.00 USD
Sale Sold out
Shipping calculated at checkout.

Husky 15120 PP Pump, End Flange, PP Center Section, SP Seats, SP Balls & SP Diaphragm


Part Number 654528

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.



  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • 1-1/2 in (38.1 mm) ANSI center and end-porting options available
  • High flow - 120 gpm (454 lpm) in a compact, portable size
  • Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
  • Lube-free operation
  • Available in polypropylene and PVDF



Operational Specifications
UPC Product 633955679733
Division PRO
Family Code FAMAOD
Country of Origin US
Unit of Measure EA
Height 19.2 IN
Length 18 IN
Width 24 IN
Volume 4.8 FT3
Shipping Weight 66 LBS
HTS Code (US) 8413500050
HTS Code (CA) 8413500020


Technical Specifications
Air Exhaust Port Size (in) 1
Air Exhaust Port Thread Gender Female
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Fluid Inlet Size (cm) 3.81
Fluid Inlet Size (in) 1-1/2
Fluid Inlet Size (mm) 38.1
Fluid Inlet Thread Gender Female
Fluid Outlet Size (cm) 3.81
Fluid Outlet Size (mm) 38.1
Fluid Outlet Thread Gender Female
Maximum Air Consumption (SCFM) 85
Maximum Air Pressure (bar) 8.6
Maximum Air Pressure (kPa) 860
Maximum Air Pressure (psi) 125
Maximum Cycle Rate (CPM) 183
Maximum Flow Rate (L/min) 454
Maximum Fluid Pressure (bar) 8.6
Maximum Fluid Pressure (kPa) 860
Maximum Fluid Pressure (psi) 125
Maximum Operating Temperature (°C) 66
Maximum Operating Temperature (°F) 150
Maximum Solid Size (cm) 0.635
Maximum Solid Size (in) 0.25
Maximum Solid Size (mm) 6.35
Minimum Operating Temperature (°C) 0
Minimum Operating Temperature (°F) 32
Minimum Storage Temperature (°C) 0
Minimum Storage Temperature (°F) 32
Model Husky
Series 15120
Maximum Fluid Pressure (MPa) 0.86
Maximum Air Pressure (MPa) 0.86

Diaphragm Compatible

Material

 Santoprene
