The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.
Carl Eric Johnson Co.

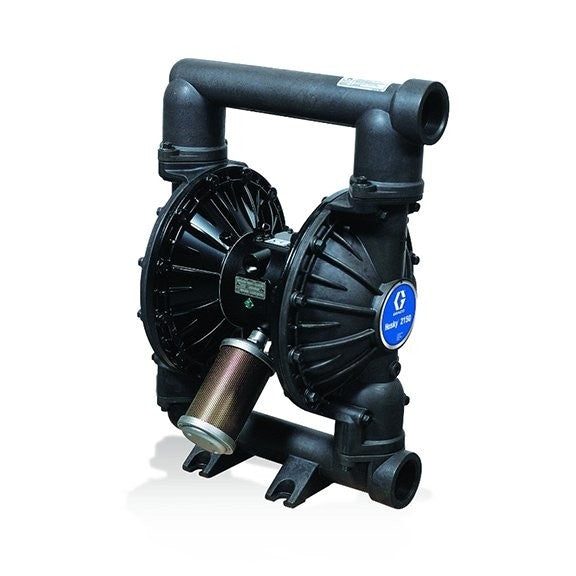

Husky 2150 AL NPT Standard Pump - Part Number DF3311
Husky 2150 AL NPT Standard Pump - Part Number DF3311
Regular price
$3,369.00 USD
Regular price
Sale price
$3,369.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm
Part Number DF3311
- Overall improved efficiency (up to 40% more efficient)
- Highest fluid flow rate in its class
- Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
- Expanded material offering to handle endless applications
- Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
- 2 in. (51 mm) ANSI end-porting
- Fluid flow up to 150 gpm (568 lpm)
- Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
- Lube-free operation
- Epoxy-coated air section for tough environmental conditions
Operational Specifications
| UPC Product | 633955337916 |
|---|---|
| Division | PRO |
| Family Code | FAMAOD |
| Country of Origin | US |
| Unit of Measure | EA |
| Height | 25.2 IN |
| Length | 19.2 IN |
| Width | 14.4 IN |
| Volume | 4.032 FT3 |
| Shipping Weight | 63 LBS |
| HTS Code (US) | 8413500050 |
| HTS Code (CA) | 8413500020 |
Technical Specifications
| Air Exhaust Port Size (in) | 3/4 |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 5.08 |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 50.8 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 5.08 |
| Fluid Outlet Size (mm) | 50.8 |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (L/min) | 568 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°C) | 82 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (cm) | 0.635 |
| Maximum Solid Size (in) | 0.25 |
| Maximum Solid Size (mm) | 6.35 |
| Model | Husky |
| Overall Height (in) | 23.6 |
| Series | 2150 |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Air Pressure (MPa) | 0.8 |
|
Diaphragm Compatible Material |
PTFE |
