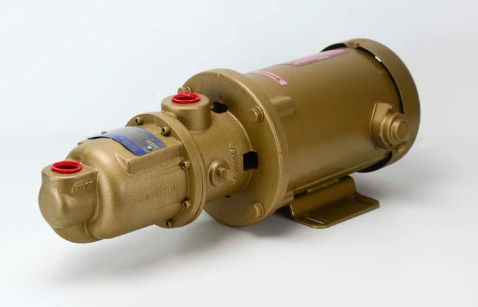

MOYNO 33260 Progressive Cavity Pump with Motor

MOYNO 33260 Progressive Cavity Pump with Motor – 1/2 HP, 230/460V, 3-Phase, Cast Iron Body

Model: 33260
Brand: MOYNO
Series: 500 Series 300 Motor Pump

Product Overview:
The Moyno 33260 is a compact, motorized progressive cavity pump designed for efficient, low-shear fluid transfer. This close-coupled unit includes a 1/2 HP TEFC motor and is ideal for handling a broad range of fluid types—from clean water to thick, abrasive, or solids-laden liquids. Built with durable materials like cast iron and chrome-plated stainless steel, this pump delivers reliable performance in demanding industrial settings.

Key Features:

All-in-One Design: Pump comes close-coupled with a 1/2 HP, 3-phase, TEFC motor (230/460V, 60 Hz, 1725 RPM) for seamless operation.

Versatile Fluid Handling: Suitable for clean, viscous, abrasive, or solids-containing fluids with non-pulsating, low-shear flow.

Durable Materials:

·       Housing: Cast iron

·       Rotor: Chrome-plated 416 stainless steel

·       Stator: Buna-N

·       Seal: Buna mechanical seal with carbon/ceramic faces

Compact & Efficient: Delivers high performance in a small footprint, reducing installation space and complexity.

Self-Priming Capability: Up to 25 ft. of suction lift (when wetted), with appropriate airtight suction lines and pipe sizing.

Specifications:

·       Motor: 1/2 HP, 3-phase, 230/460V, 60 Hz, 1725 RPM, TEFC, C-Face

·       Connections: 3/4" NPT inlet and outlet

·       Temperature Range: Up to 160°F

·       Rotor Material: 416 Stainless Steel, Chrome-Plated

·       Seal Type: Mechanical (Buna/Carbon/Ceramic)

·       Mounting: Close-Coupled

Applications:

·       Chemical processing

·       Wastewater and sludge handling

·       Food and beverage production

·       Industrial adhesives, slurries, and coatings

·       Any application requiring accurate, repeatable, low-shear flow

Why Choose the Moyno 33260?
This pump combines rugged construction with maintenance-friendly design. With no timing gears or valves to maintain, the 33260 minimizes downtime while maximizing versatility and flow accuracy.
