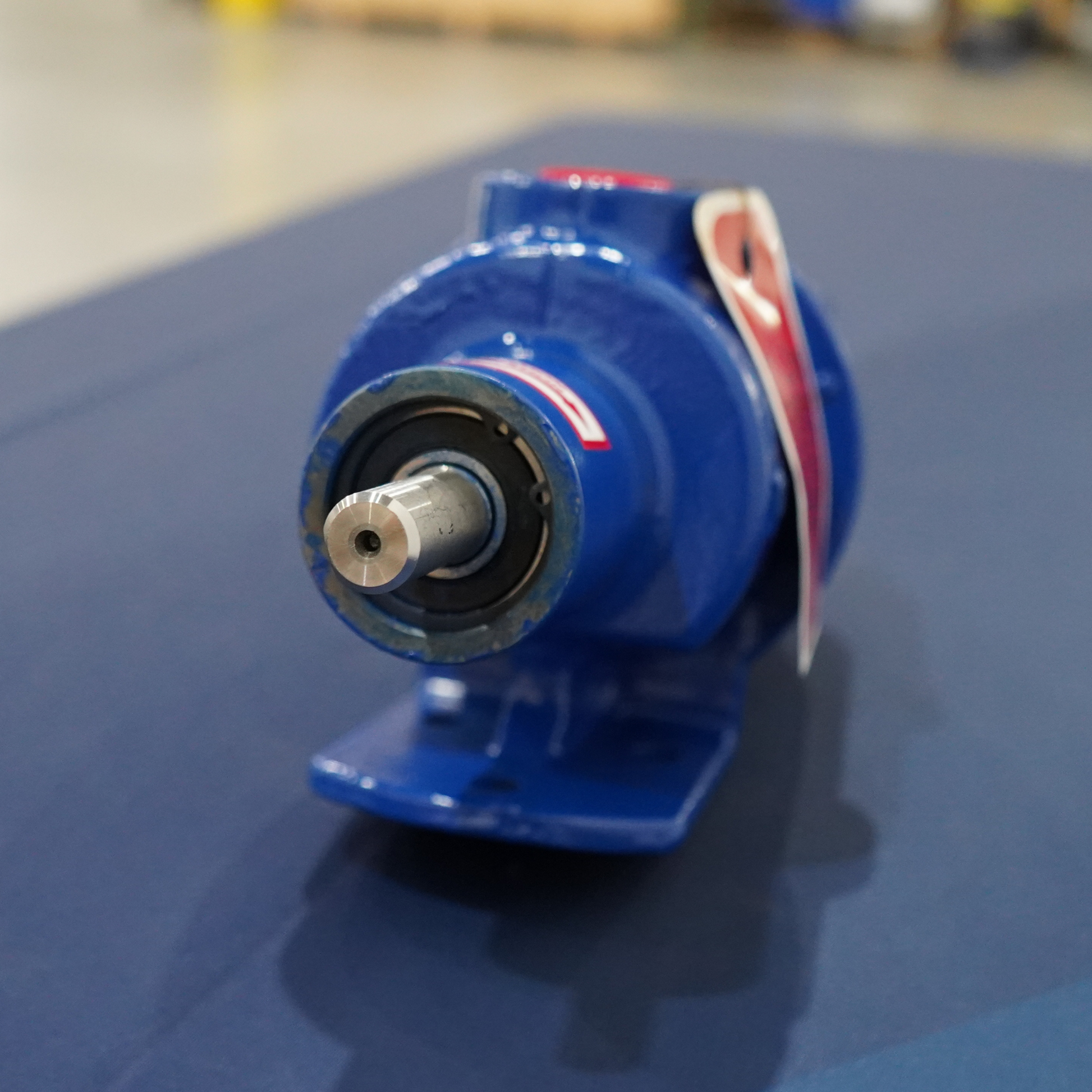

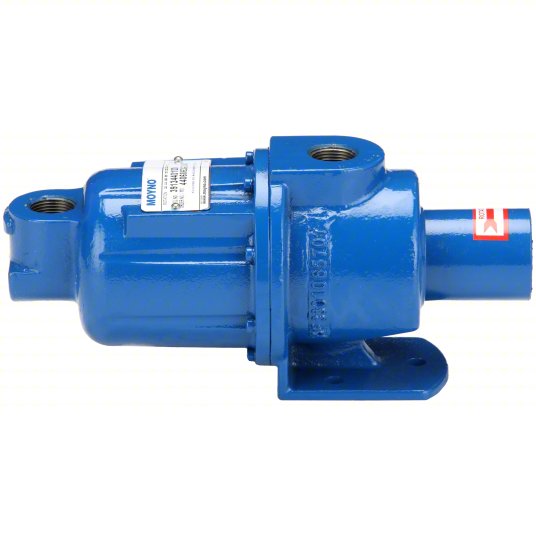

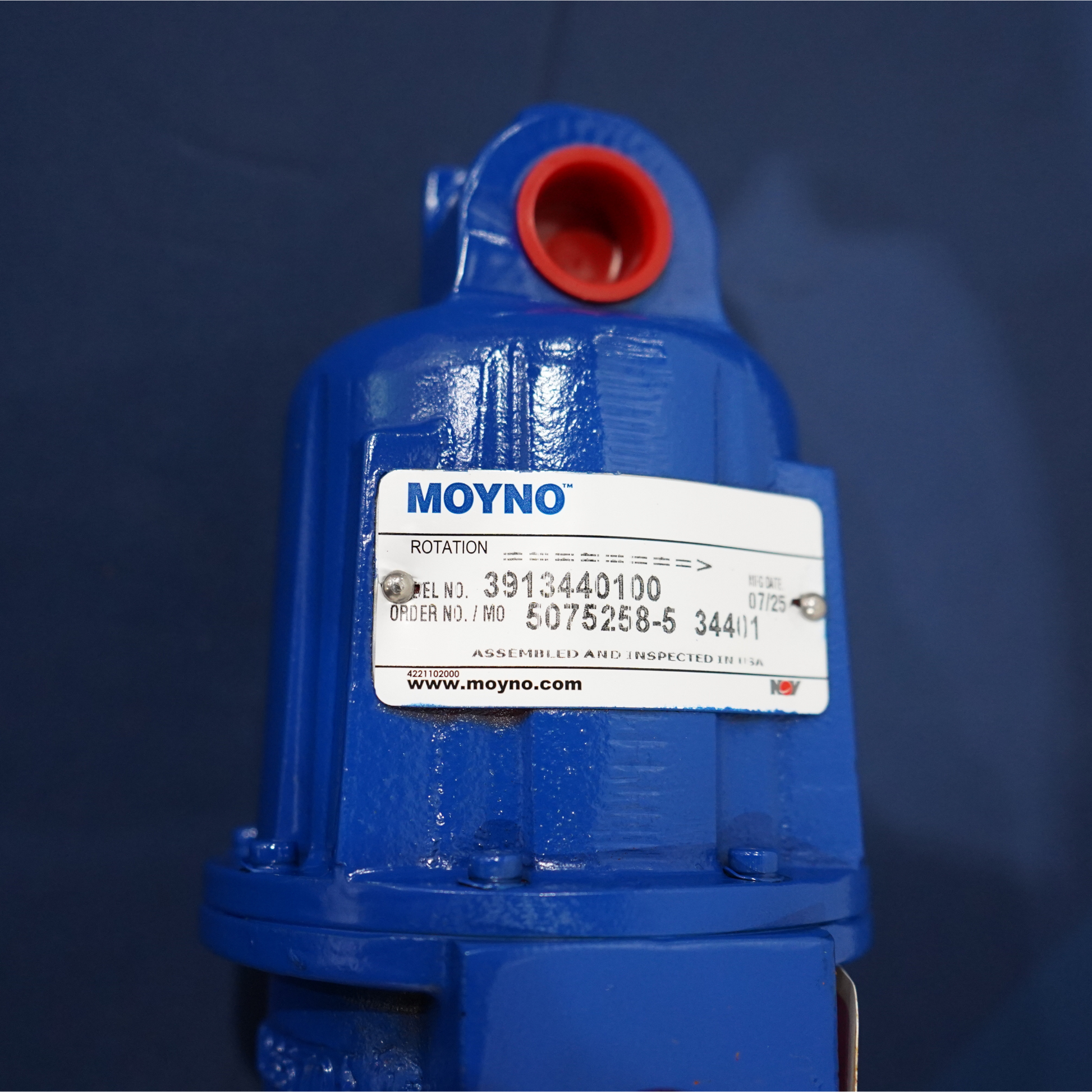

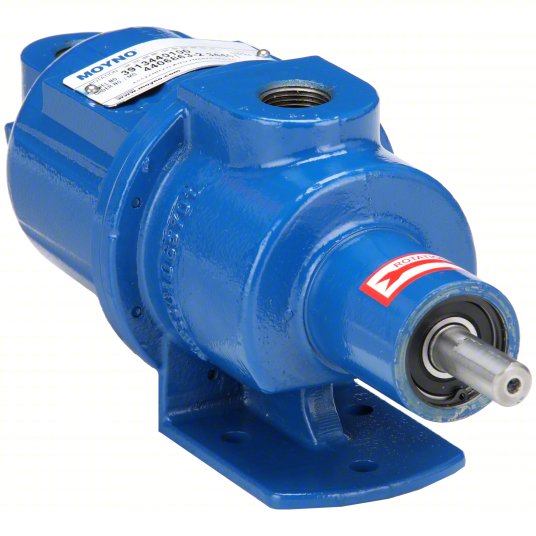

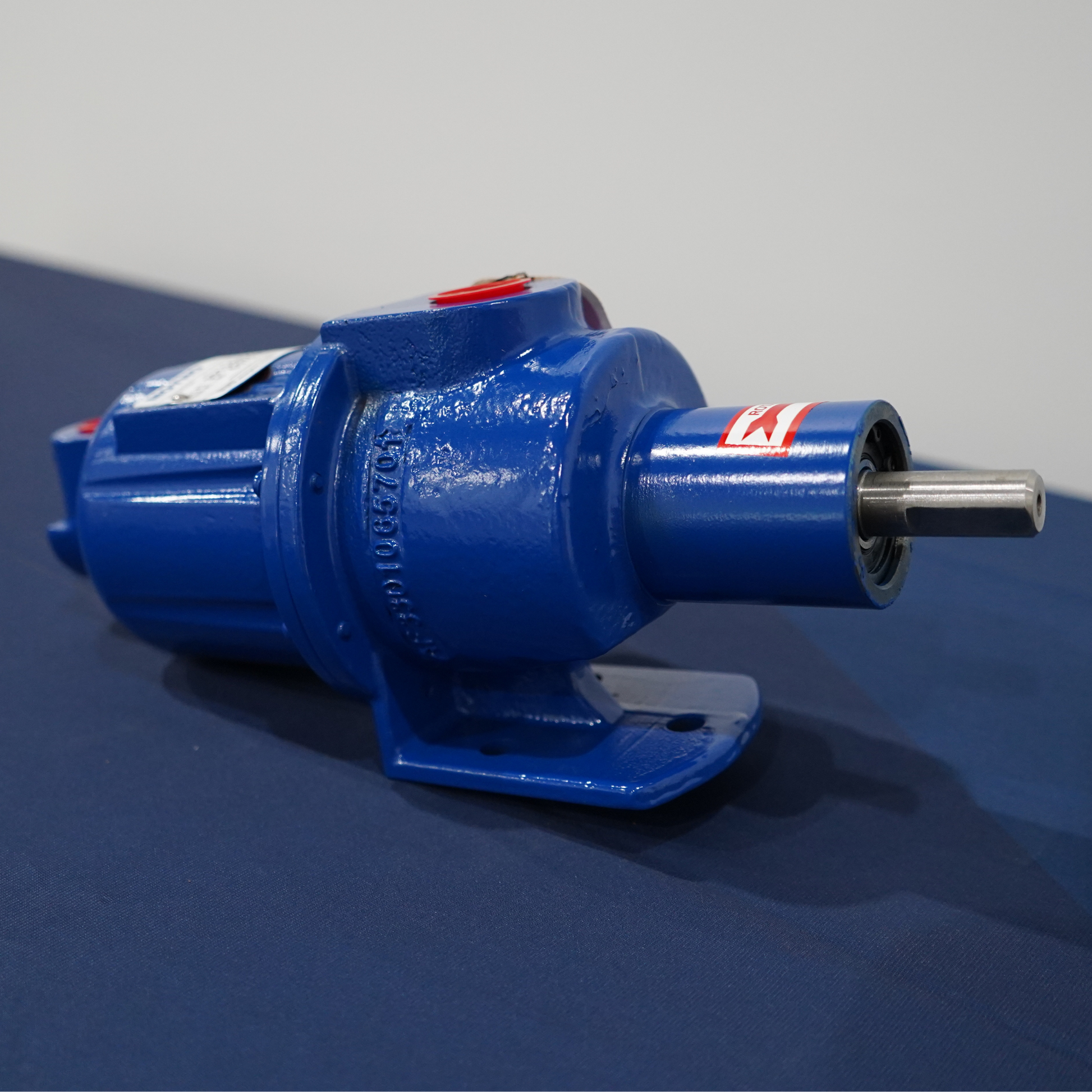

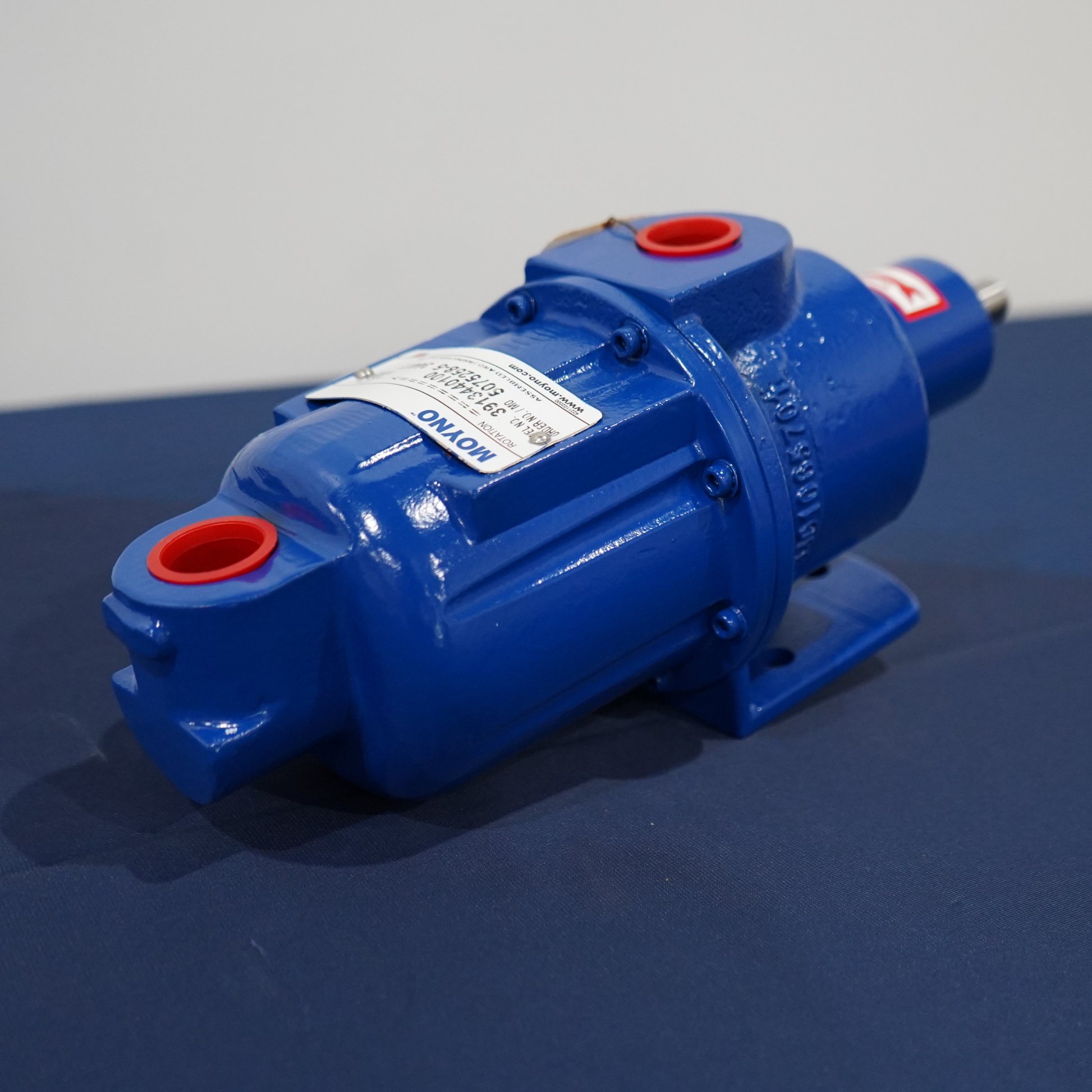

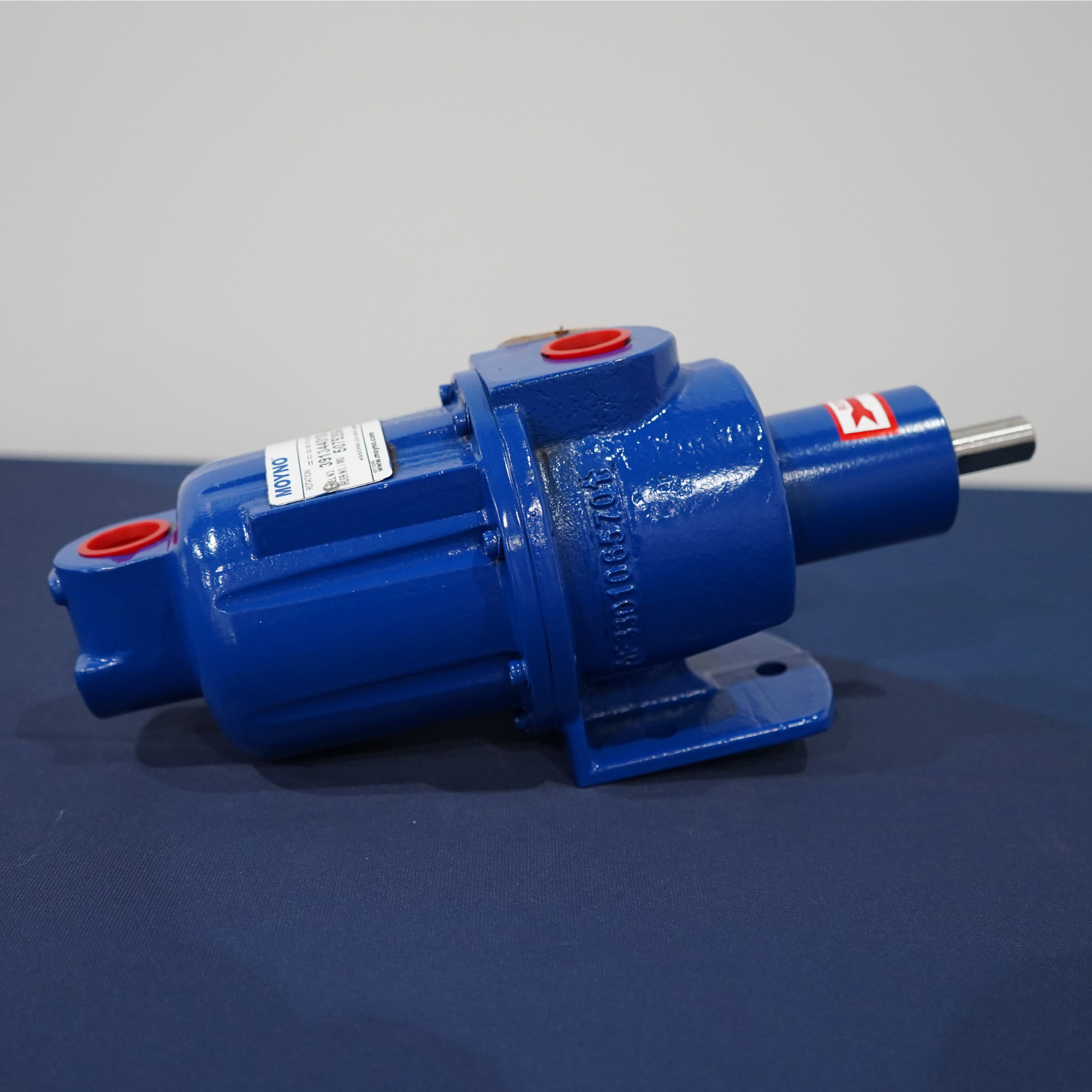

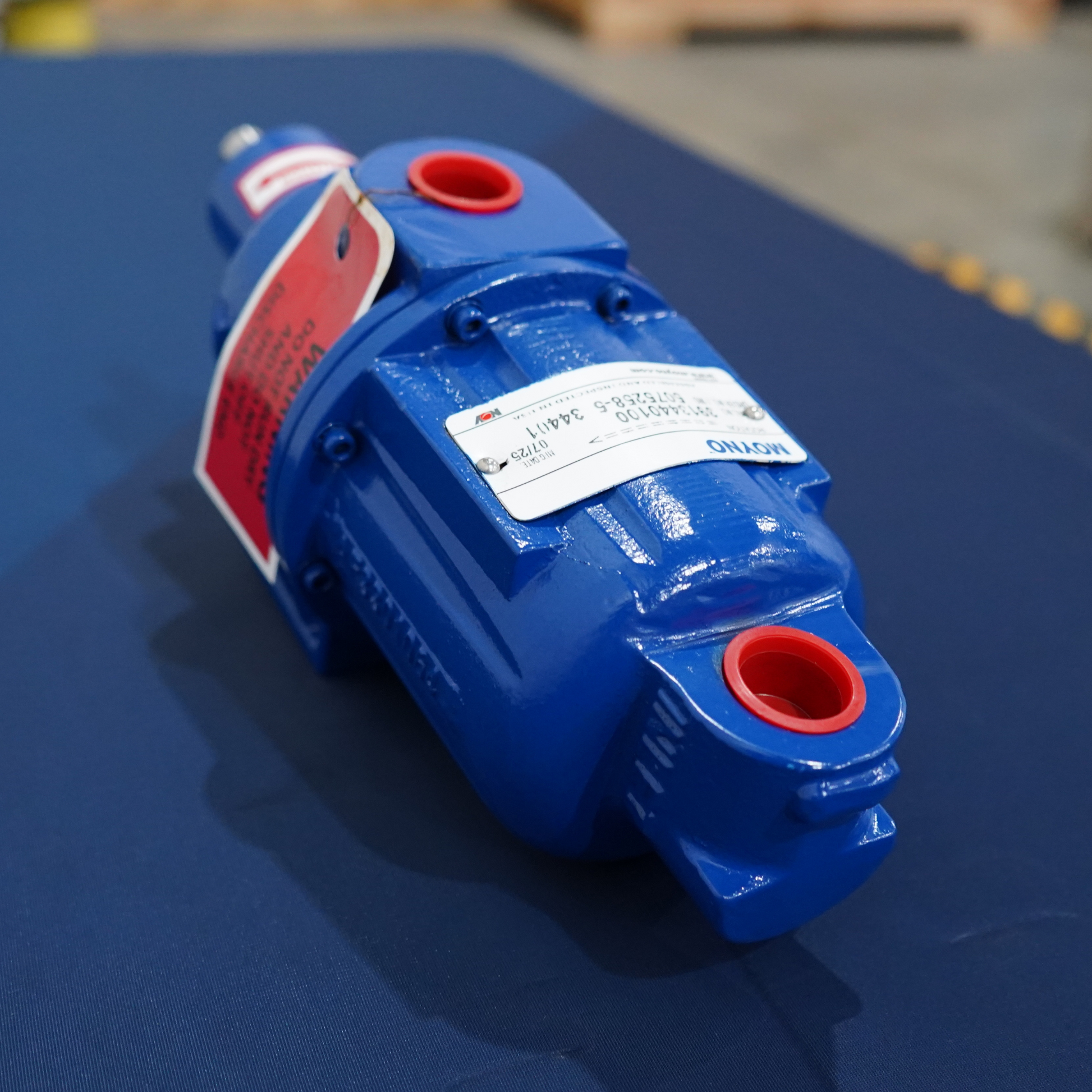

MOYNO 34401 Progressive Cavity Pump

MOYNO 34401 Progressive Cavity Pump – Bare Shaft, Cast Iron, 3/4" NPT, Buna-N

Model: 34401
Brand: MOYNO

Product Overview:
The Moyno 34401 is a non-motorized, pedestal-mounted progressive cavity pump engineered for efficient, low-shear transfer of thick or sensitive fluids. Built with a durable cast iron housing and stainless steel rotor, this pump is ideal for handling high-viscosity materials in a wide range of industrial applications.

Key Features:

Bare Shaft Design: Allows for flexible motor selection and integration based on your system's requirements (up to 1/2 HP).

Progressive Cavity Technology: Provides smooth, pulseless flow while minimizing shear—perfect for delicate, viscous, or solids-laden fluids.

Durable Build:

Housing: Cast iron for long-lasting performance

Rotor: Stainless steel for corrosion resistance

Stator: Buna-N for compatibility with a range of fluids

Seal: Mechanical carbon/ceramic for reliable sealing

Self-Priming Capabilities: Once wetted, can lift fluids with proper suction line setup.

Specifications:

Port Size: 3/4" NPT suction and discharge

Viscosity Range: Up to 20,000 cps

Solids Handling: Up to 8 mm in diameter

Discharge Pressure: Max 40 psi

Motor Speed Range: 150 – 1,750 RPM

Temperature Range: 10°F to 160°F

Overall Dimensions: 12.6" L x 5.1" H x 4.8" W

Pump Operation: Non-motorized pedestal style

Applications:

Wastewater and sludge transfer

Chemical metering

Food, beverage, and cosmetic processing

Industrial adhesives, slurries, and resins

Why Choose the Moyno 34401?
This bare-shaft progressive cavity pump offers high-efficiency performance in a compact and adaptable design. With rugged materials and a wide operating range, it’s an ideal choice for facilities needing reliable, low-maintenance fluid handling.
