MOYNO 35601 Progressive Cavity Pump

MOYNO 35601 Progressive Cavity Pump – Bare Shaft, Cast Iron, 1-1/2" NPT, Buna-N

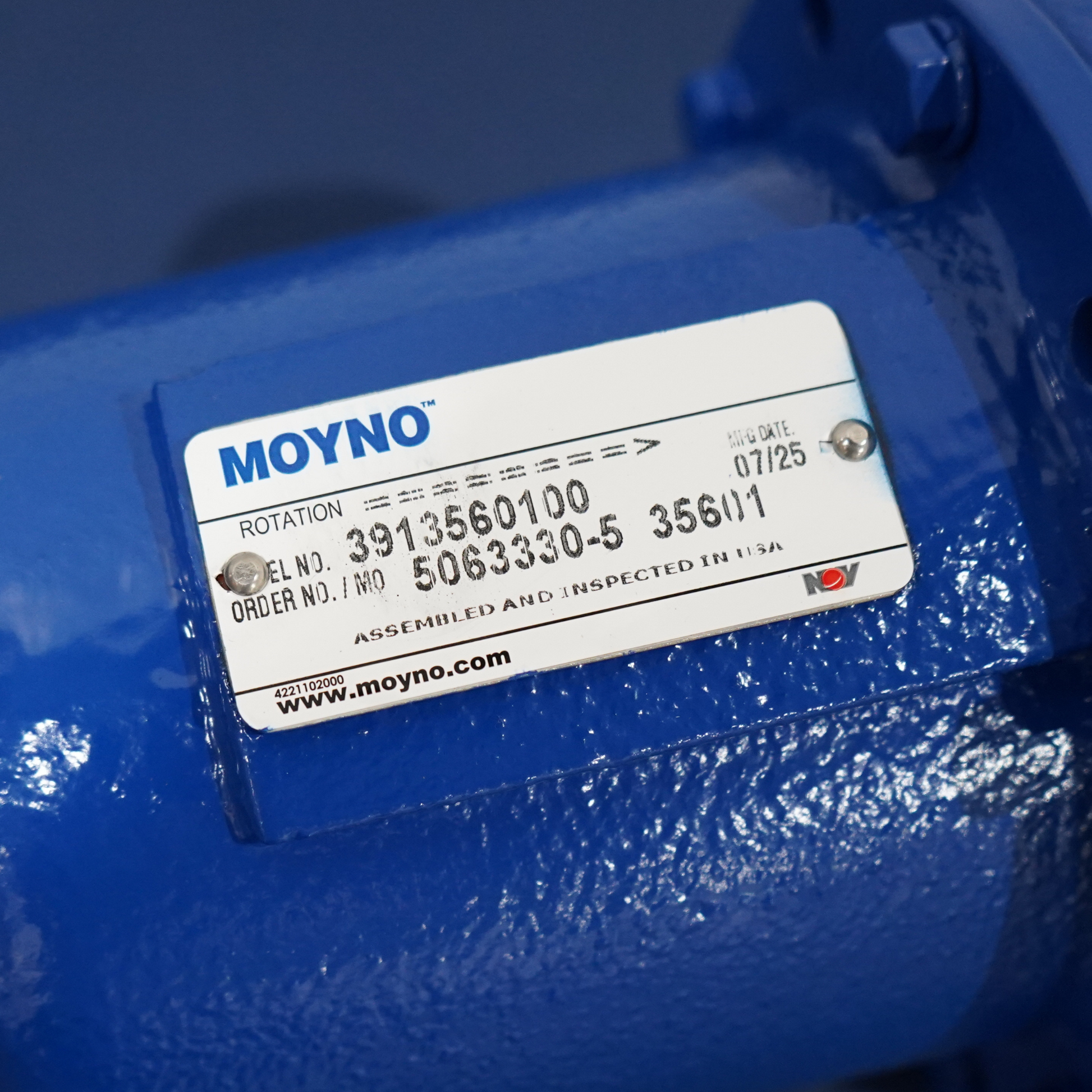

Model: 35601
Brand: MOYNO

Product Overview:
The Moyno 35601 is a heavy-duty, non-motorized progressive cavity pump designed for high-volume, high-viscosity fluid applications. With a cast iron body, stainless steel rotor, and Buna-N stator, this pedestal-mounted pump delivers consistent, low-shear performance—ideal for shear-sensitive or solids-laden media.

Key Features:

Non-Motorized Pedestal Design: Bare shaft configuration allows for pairing with a compatible 1-1/4 HP motor for tailored performance.

Reliable Progressive Cavity Flow: Delivers smooth, accurate flow with minimal pulsation—ideal for dosing, metering, and continuous transfer.

Heavy-Duty Construction:

Housing: Cast iron for rugged industrial use

Rotor: Stainless steel for corrosion resistance and durability

Stator: Buna-N for chemical compatibility

Seal: Carbon/ceramic mechanical seal for dependable fluid containment

Wide Operating Range: Performs efficiently across a broad temperature range and with highly viscous materials.

Specifications:

Connection Size: 1-1/2” NPT inlet and outlet

Max Flow Viscosity: Up to 20,000 cps

Solids Handling: Up to 9.5 mm particle diameter

Discharge Pressure: Up to 50 psi

Speed Range: 150 to 1,750 RPM

Temperature Range: 10°F to 160°F

Overall Dimensions: 17.5" L x 8.1" H x 7.6" W

Motor Power Requirement: Up to 1-1/4 HP

Applications:

Industrial wastewater and sludge transfer

Chemical and polymer handling

Food, beverage, and cosmetic production

Adhesives, paints, and thick coatings

Why Choose the Moyno 35601?
With its robust 1-1/2” ports and expanded flow capabilities, the Moyno 35601 is built for applications requiring higher volume and solid-handling capacity. It's a powerful, low-maintenance solution for industries that demand consistent performance under tough conditions.
