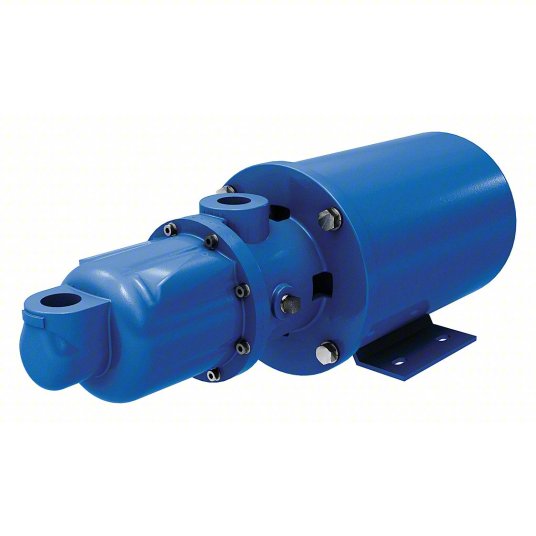

MOYNO 35651 Progressive Cavity Pump with Motor

MOYNO 35651 Progressive Cavity Pump with Motor

1-1/2 HP, 3-Phase, Cast Iron, Buna-N, 1-1/2" x 1-1/4" NPT

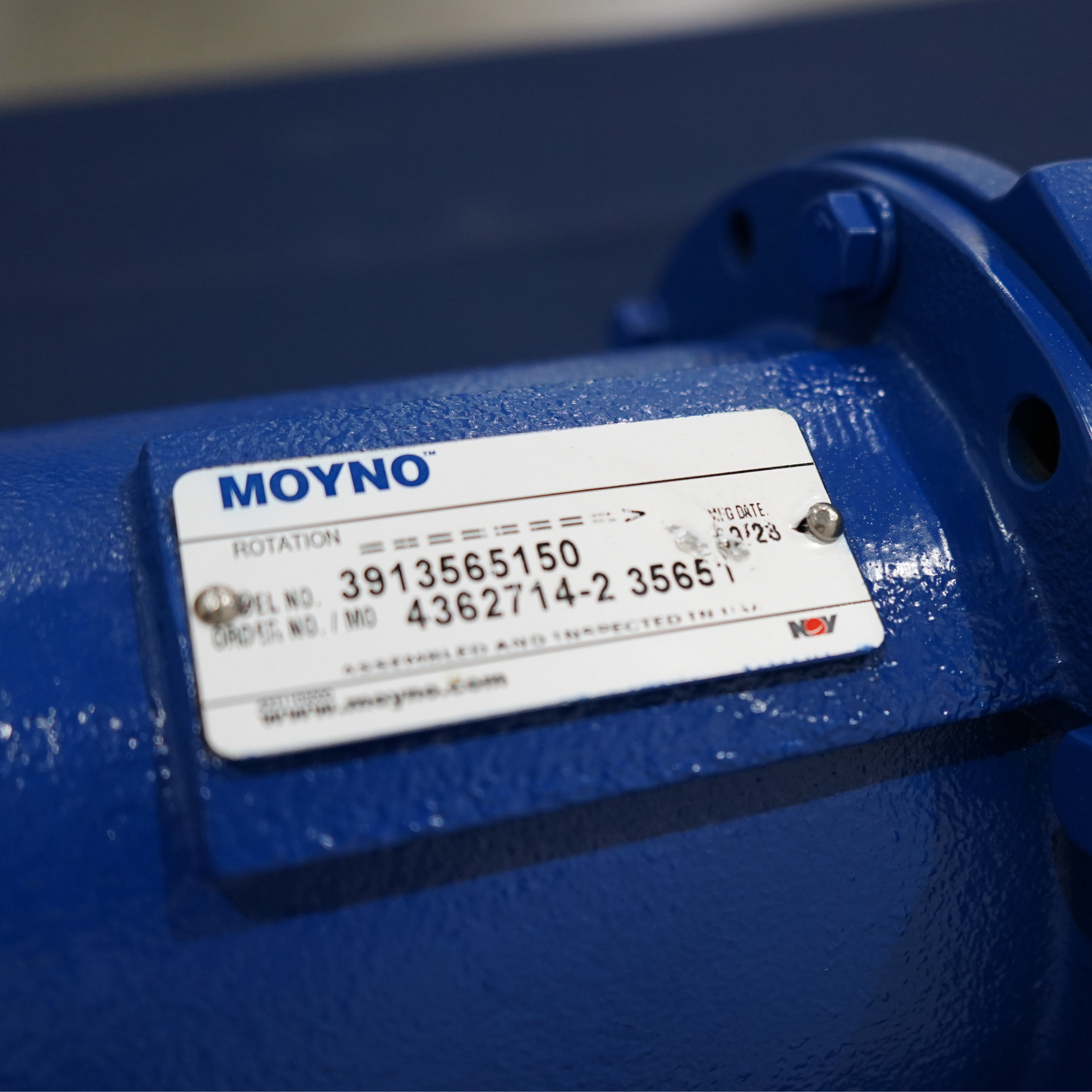

Model: 35651
Brand: MOYNO
Series: 500 Series 300 Motor Pump

Product Overview:
The Moyno 35651 is a close-coupled, motorized progressive cavity pump designed for high-efficiency fluid transfer in industrial applications. This unit includes a 1-1/2 HP, 3-phase motor and features rugged cast iron construction with a stainless steel rotor and Buna components. Ideal for thick, abrasive, or solids-laden fluids, this pump offers dependable, low-shear performance with minimal maintenance requirements.

Key Features:

Complete Motorized Unit: Includes a TEFC, C-faced motor (1.5 HP, 230/460V, 3-phase, 60 Hz, 1725 RPM) for plug-and-play setup.

Durable Construction:

Pump Housing: Cast iron for long-term durability

Rotor: 416 stainless steel for corrosion resistance

Stator: Buna-N for chemical compatibility

Seal: Buna mechanical seal with carbon/ceramic faces

Optimized Flow Design: Progressive cavity mechanism ensures smooth, accurate, non-pulsating fluid movement—even with viscous or abrasive materials.

Self-Priming: Capable of up to 25 ft. suction lift when wetted and properly installed with airtight suction lines.

Specifications:

Inlet Port: 1-1/2" NPT

Discharge Port: 1-1/4" NPT

Max Temperature: 160°F

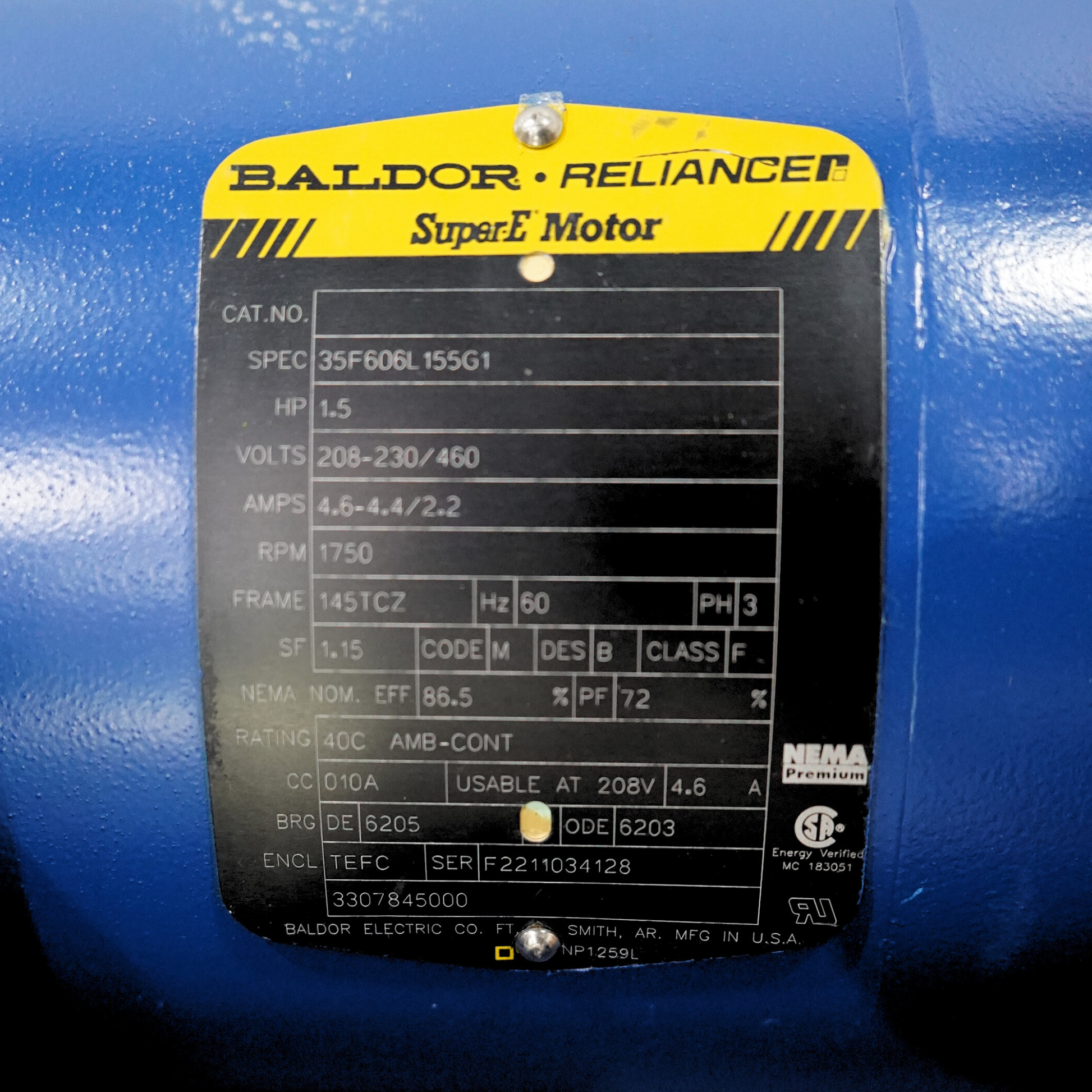

Motor: 1-1/2 HP, TEFC, 1725 RPM, 230/460V, 3-phase

Flow Characteristics: Handles a wide range of viscosities and fluid types

Seal Type: Carbon/Ceramic Mechanical Seal

Mounting Style: Close-coupled

Common Applications:

Chemical transfer and metering

Sludge and wastewater handling

Food and beverage processing

Industrial coatings, resins, and adhesives

High-viscosity or solids-laden fluid transfer
