MOYNO 36701 Progressive Cavity Pump – 500 Series

MOYNO 36701 Progressive Cavity Pump

Bare Shaft, 2" NPT, Cast Iron, Buna Seal

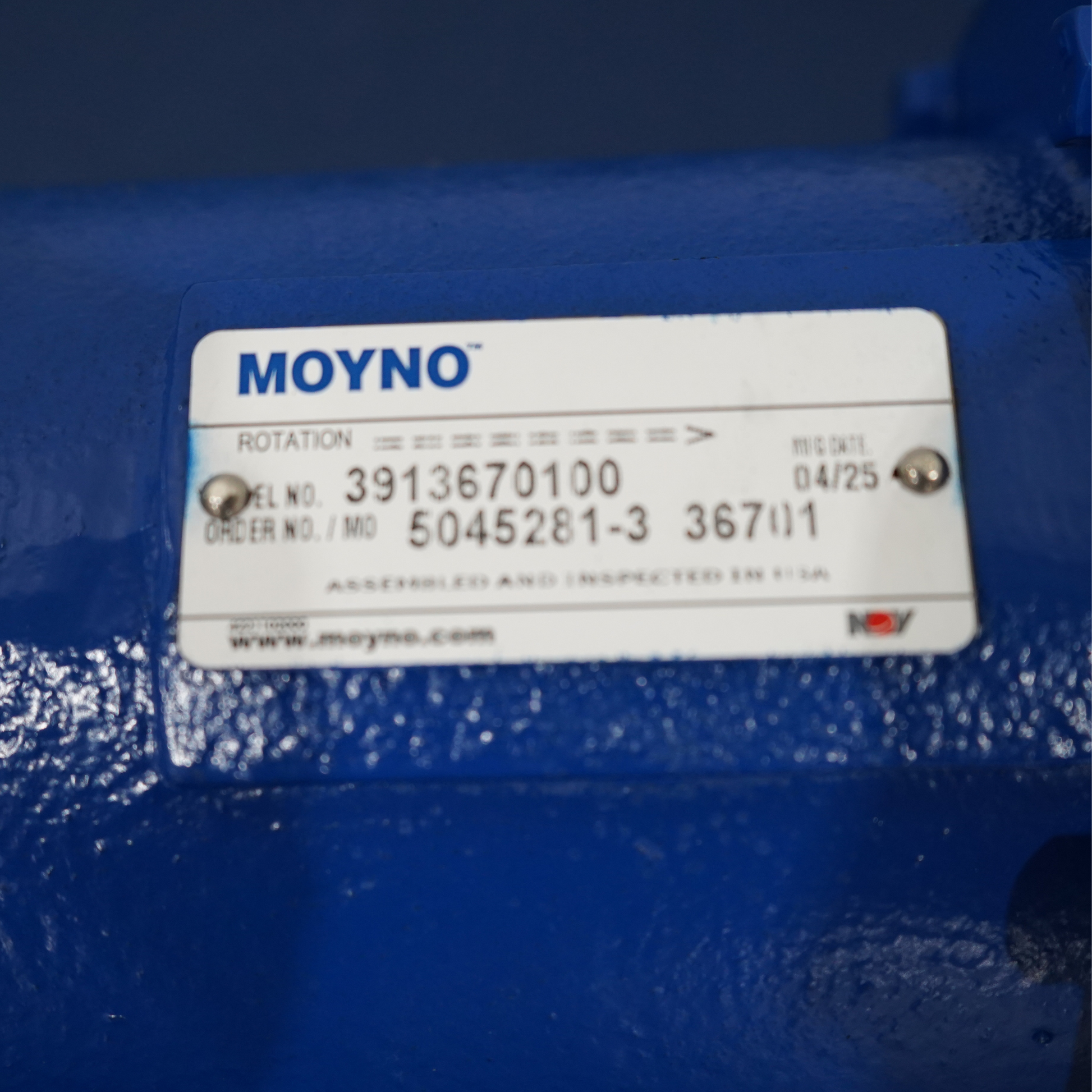

Model: 36701
Brand: MOYNO
Series: 500 Series 300 – Pump End Only

Product Overview:
The Moyno 36701 is a heavy-duty, bare-shaft progressive cavity pump engineered for handling high-volume, high-viscosity fluids with precision and reliability. Designed with a cast iron housing and 2" NPT ports, this pump is ideal for applications where smooth, non-pulsating flow and minimal shear are essential. The 36701 is built for easy integration into existing systems and delivers long-lasting, low-maintenance performance.

Key Features:

Bare Shaft Configuration: Designed for integration with a compatible motor or drive of your choice.

Rugged Construction:

Housing: Cast iron for durability in industrial environments

Rotor: Chrome-plated 416 stainless steel for superior wear resistance

Stator: Buna-N for chemical compatibility

Seal: Buna mechanical seal with carbon/ceramic faces

Shaft: 416 stainless steel for strength and corrosion resistance

Consistent Low-Shear Flow: Progressive cavity design delivers accurate, repeatable, non-pulsating fluid movement.

Self-Priming Capability: Capable of up to 25 feet of suction lift when wetted and properly installed with airtight suction lines.

Maintenance Friendly: No valves or timing gears, and features dual heavy-duty, sealed, and pre-lubricated ball bearings.

Specifications:

Suction Port: 2" NPT

Discharge Port: 2" NPT

Max Temperature: 160°F

Seal Type: Carbon/Ceramic Mechanical Seal

Pump Style: Bare Shaft (Pedestal Mount)

Rotor Material: Chrome-Plated 416 Stainless Steel

Stator Material: Buna-N

Applications:

Sludge and wastewater pumping

Industrial process fluids

Chemical and polymer transfer

Food and beverage production

Abrasive and solids-laden fluids
