Moyno 33201 Pump Unit

Moyno 33201 Pump Unit

$3,548.00 USD
$3,548.00 USD
Sale Sold out
Shipping calculated at checkout.

Moyno 33201 Pump Unit

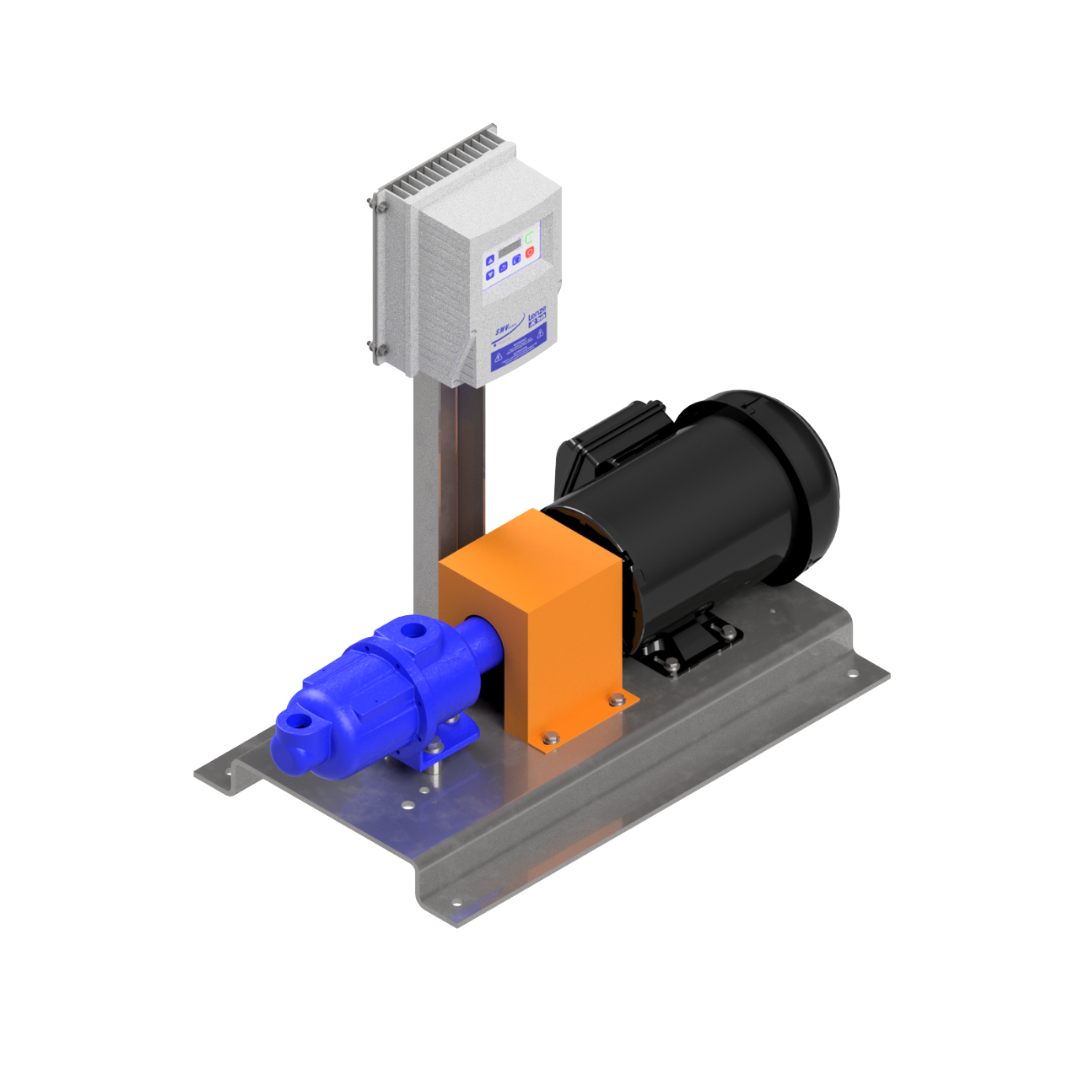

Motor & VFD on Baseplate

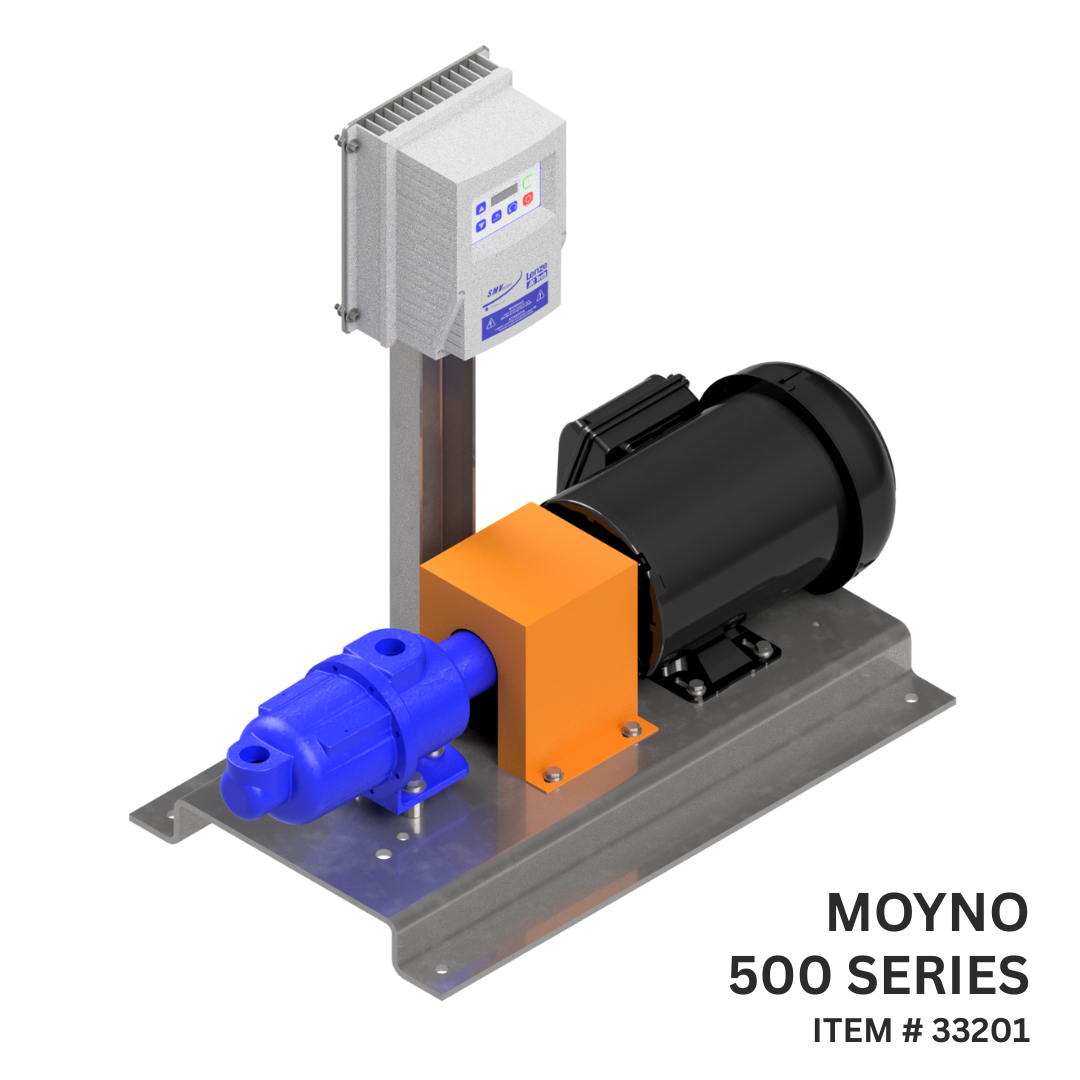

The Moyno 33201 (a 500 series pump) with Lenze VFD and motor on baseplate is a complete, fabricated pumping unit designed for fast installation and reliable performance. Part of our Quick Ship program, this package ships within two business days of purchase order placement.

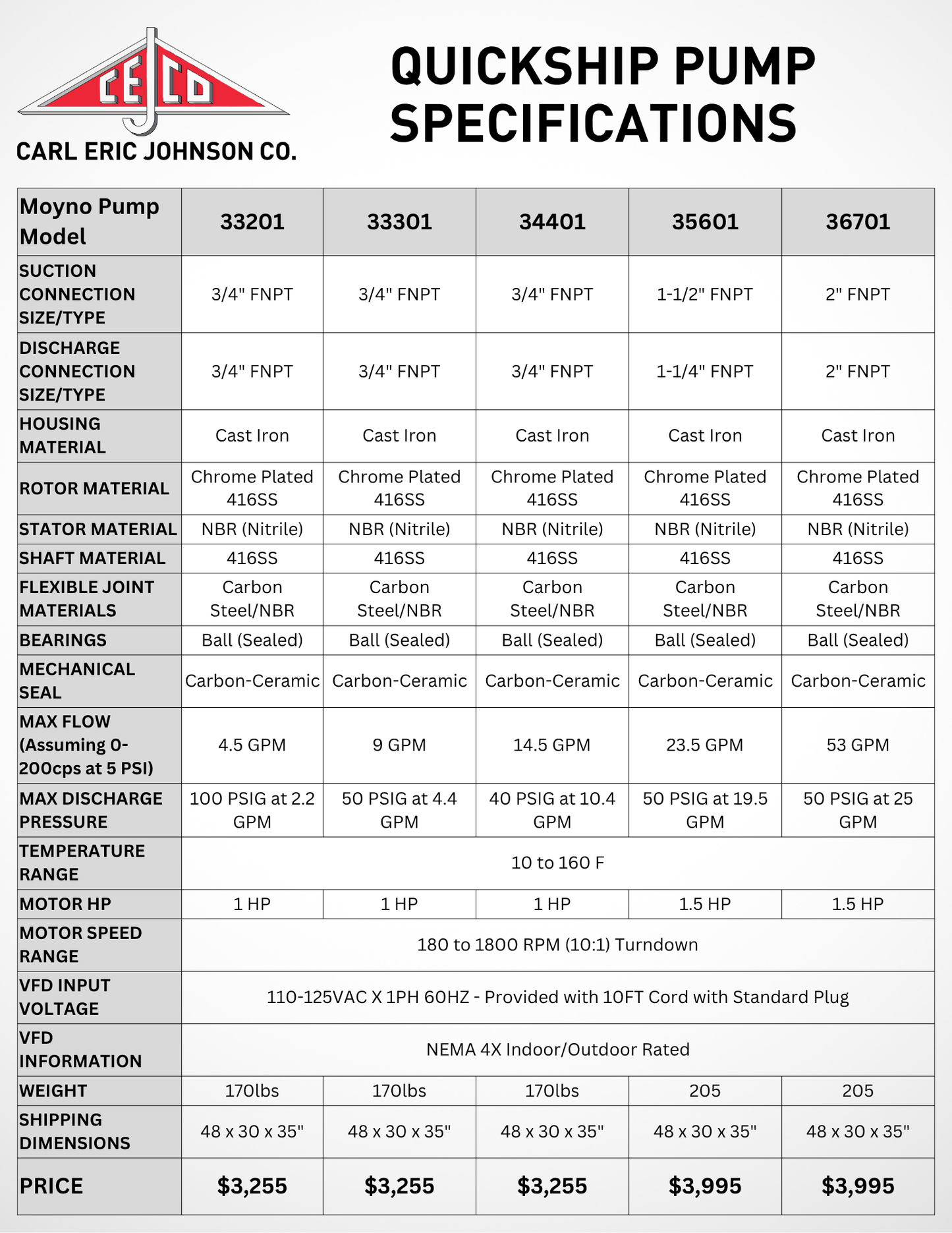

SPECIFICATIONS

  • Suction/Discharge Connection Size: 3/4″ FNPT
  • Housing Material: Cast Iron
  • Rotor Material: Chrome Plated 416SS
  • Stator Material: NBR (Nitrile)
  • Max Flow: 4.5 GPM
  • Max Discharge Pressure: 100 PSIG at 2.2 GPM
  • Temperature Range: 10 to 160F
  • Motor Speed Range: 180 to 1800 RPM (10:1) Turndown
  • VFD Information: NEMA 4X Indoor/Outdoor Rated

Length: 26.76″ | Height: 24″ | Width: 14″
