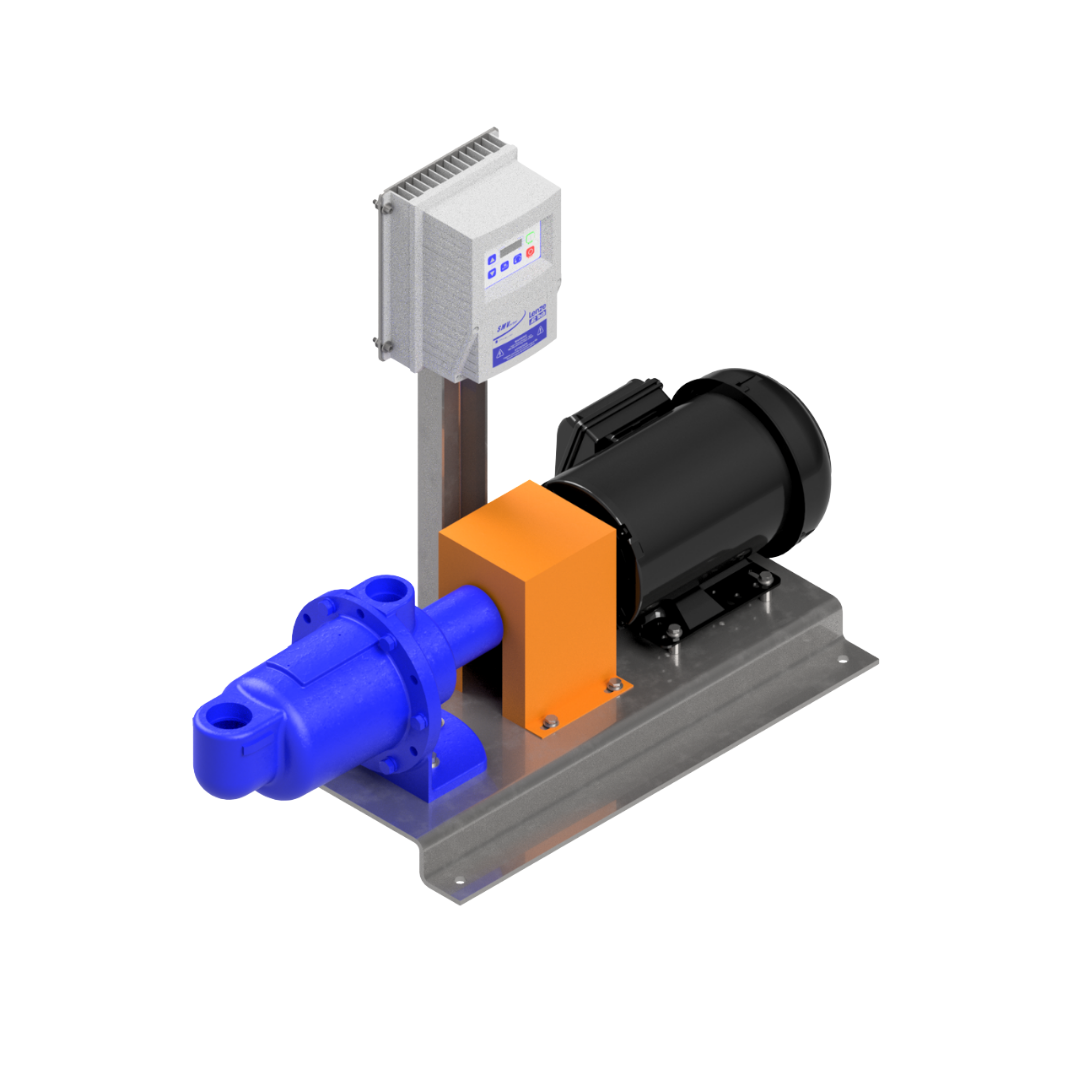

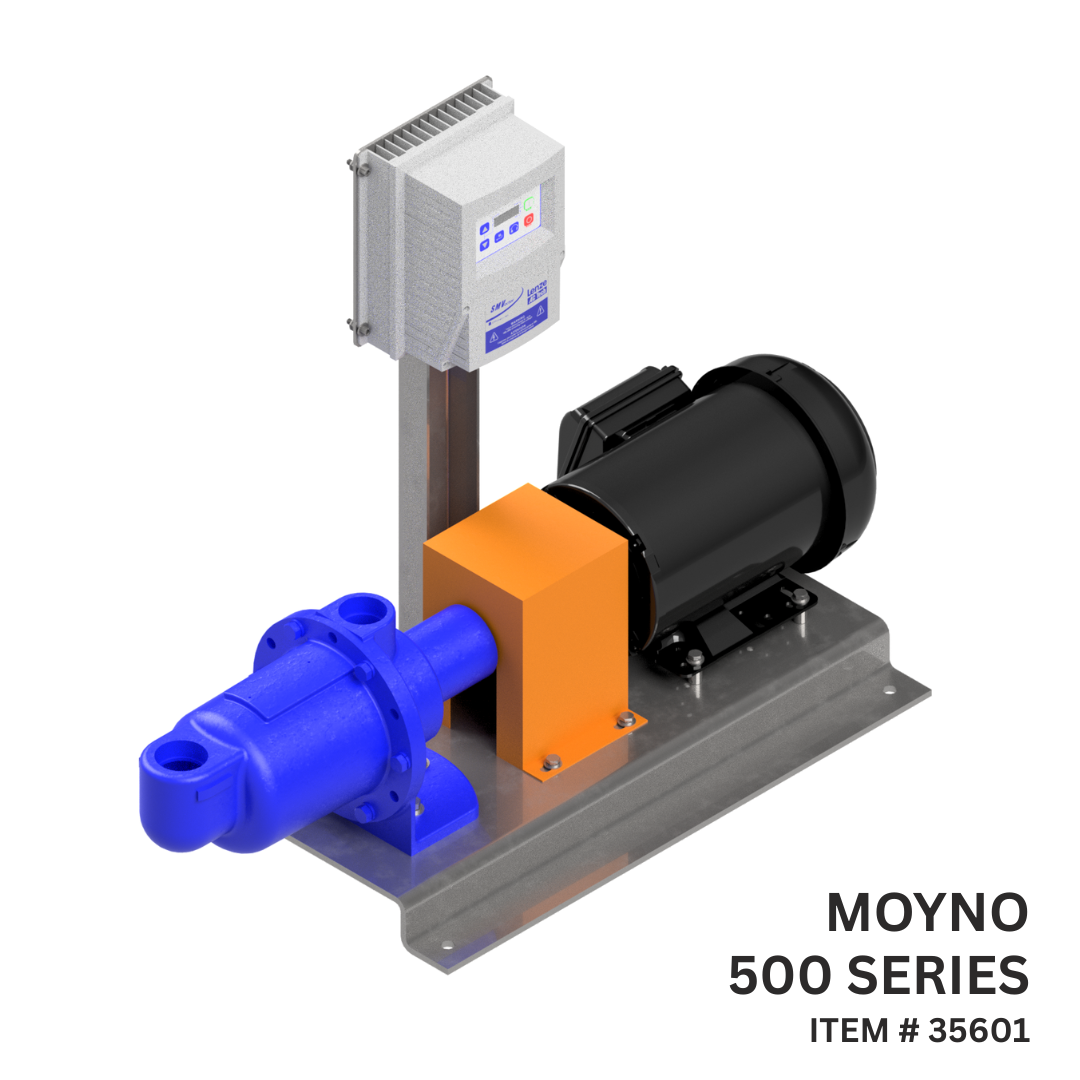

Moyno 35601 Pump Unit

Motor and VFD on Baseplate

The Moyno 35601 (a 500 series pump) with Lenze VFD and motor on baseplate is a complete, fabricated pumping unit designed for fast installation and long-term reliability. Part of our Quick Ship program, this package ships within two business days of purchase order placement.

• Suction Connection Size: 1-1/2″NPT
• Discharge Connection Size: 1-1/4″
• NPT Housing Material: Cast Iron
• Rotor Material: Chrome Plated
• Stator Material: NBR (Nitrile)
• Max Flow: 23.5 GPM
• Max Discharge Pressure: 50 PSIG at 19.5 GPM
• Temperature Range: 10 to 160F
• Motor Speed Range: 180 to 1800 RPM (10:1)
• Turndown VFD Information: NEMA 4X Indoor/Outdoor Rated

Length” 31.65″ | Height: 24″ | Width: 14″
