Carl Eric Johnson Co.
Moyno 36701 Pump Unit
Moyno 36701 Pump Unit
Regular price
$4,355.00 USD
Regular price
Sale price
$4,355.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

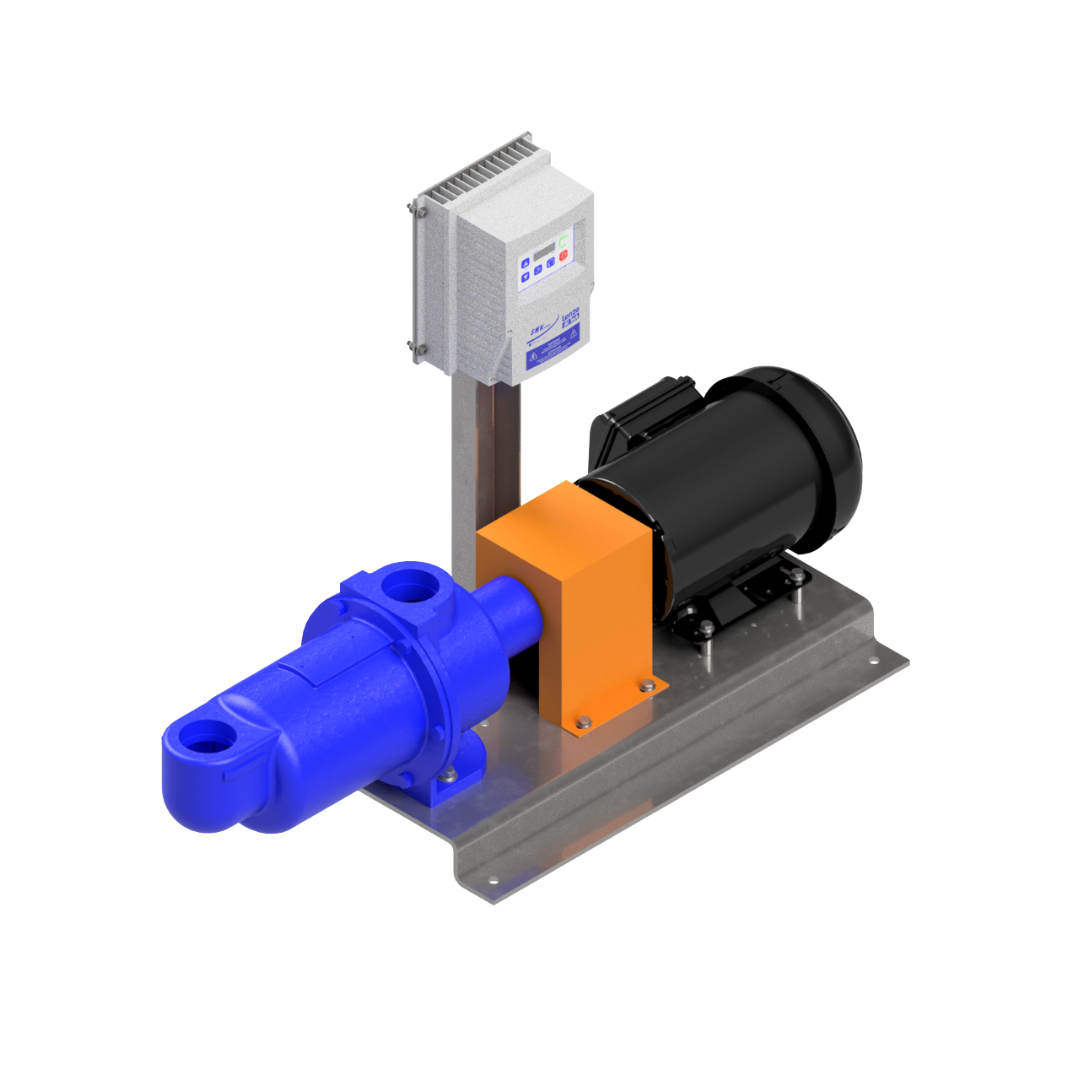

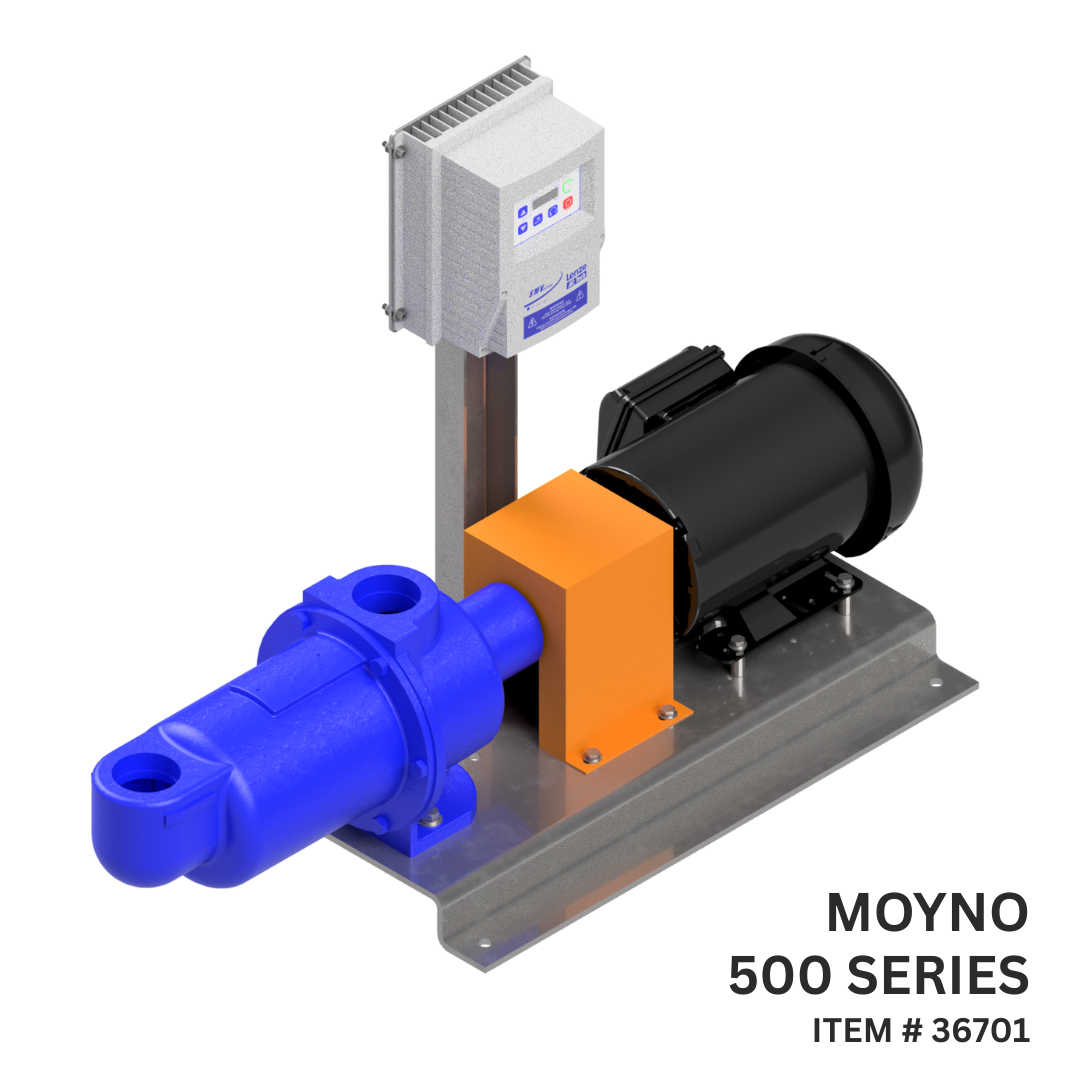

Moyno 36701 Pump Unit
With Motor and VFD on Baseplate
The Moyno 36701 (a 500 series pump) with Lenze VFD and motor on baseplate is a complete, fabricated pumping solution engineered for heavy-duty metering and transfer applications. Part of our Quick Ship program, this package ships within two business days of purchase order placement.

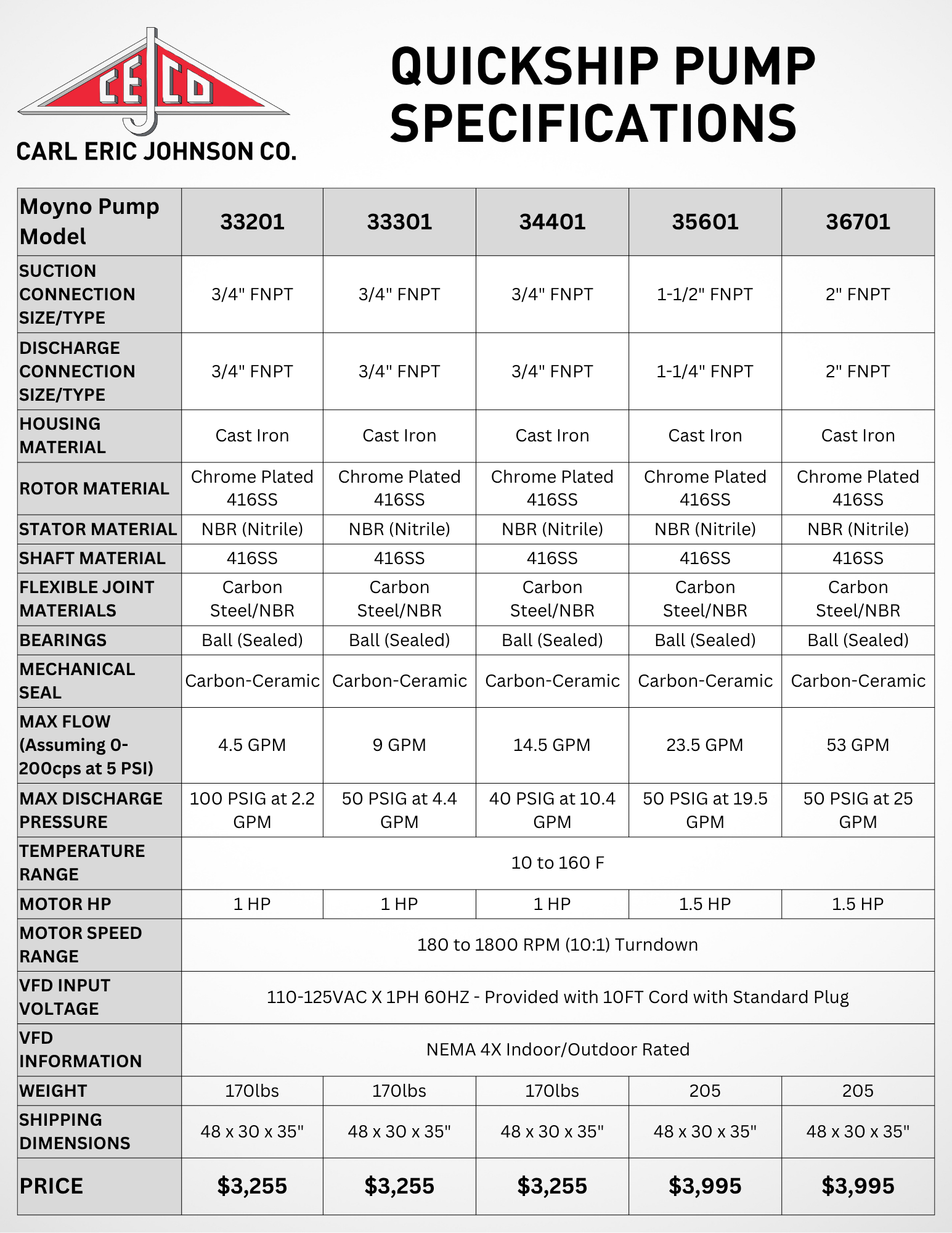

- Suction/Discharge Connection Size: 2″ NPT
- Housing Material: Cast Iron
- Rotor Material: Chrome Plated 416SS
- Stator Material: NBR (Nitrile)
- Max Flow: 53 GPM
- Max Discharge Pressure: 50 PSIG at 25 GPM
- Temperature Range: 10 to 160F
- Motor Speed Range: 180 to 1800 RPM (10:1) Turndown
- VFD Information: NEMA 4X Indoor/Outdoor Rated
Length: 35.18″ | Height: 24″ | Width: 14″
