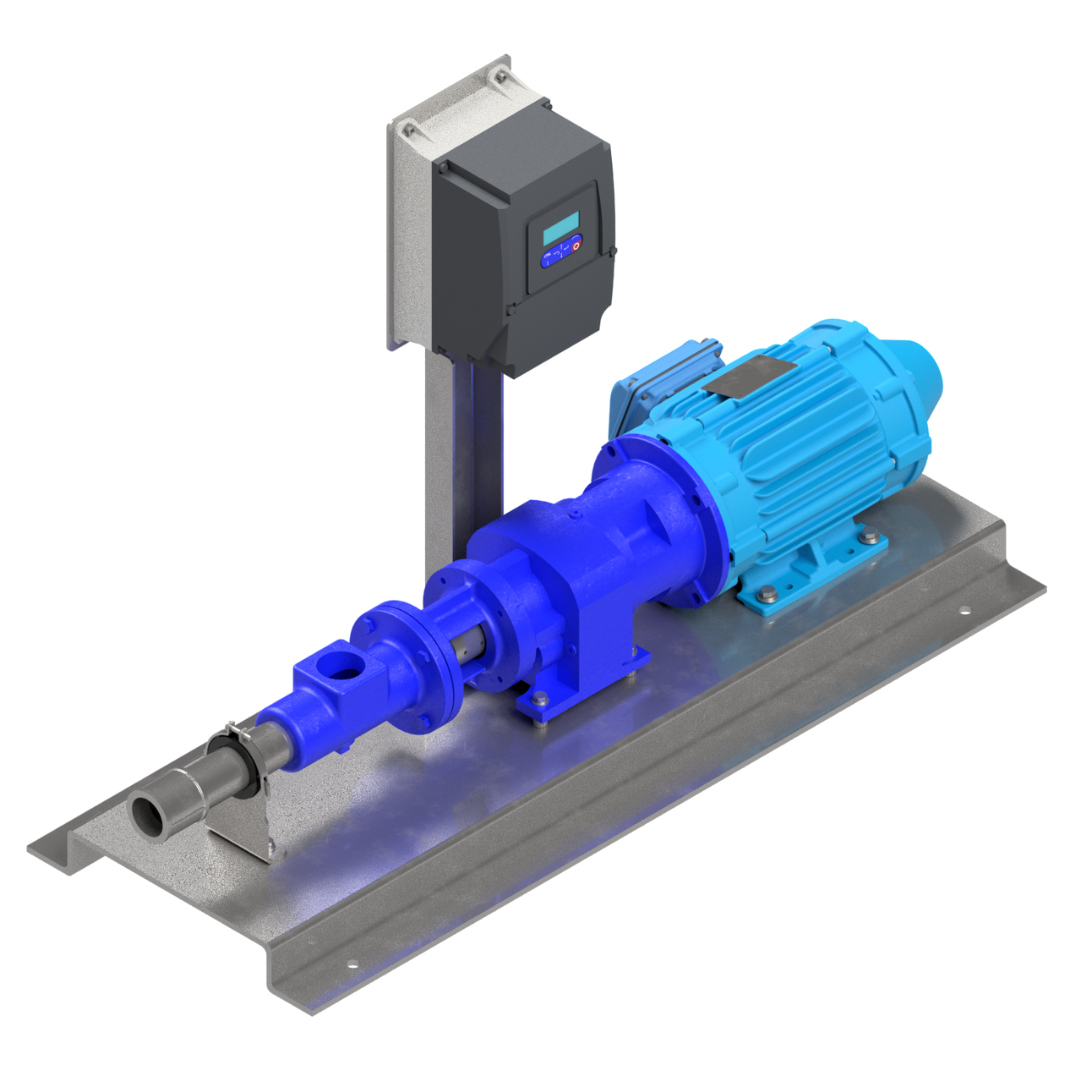

Moyno B4100D Metering Pump Unit

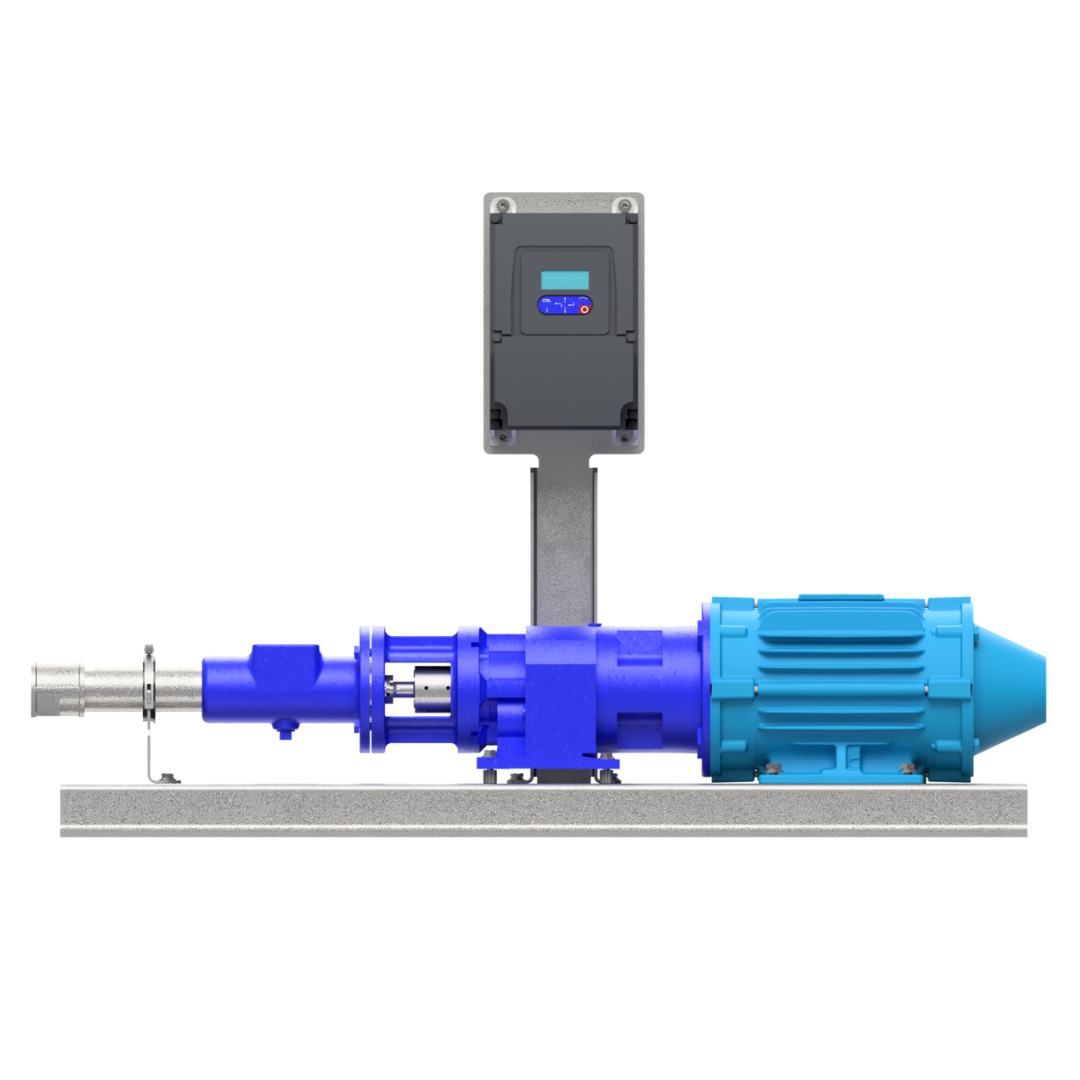

With Motor & VFD on a Baseplate
Engineered for accuracy and long service life, the Moyno B4100D offers dependable performance for metering and dosing needs. Each unit is assembled on a base plate with the pump and motor as a complete package, ensuring quick installation and startup.

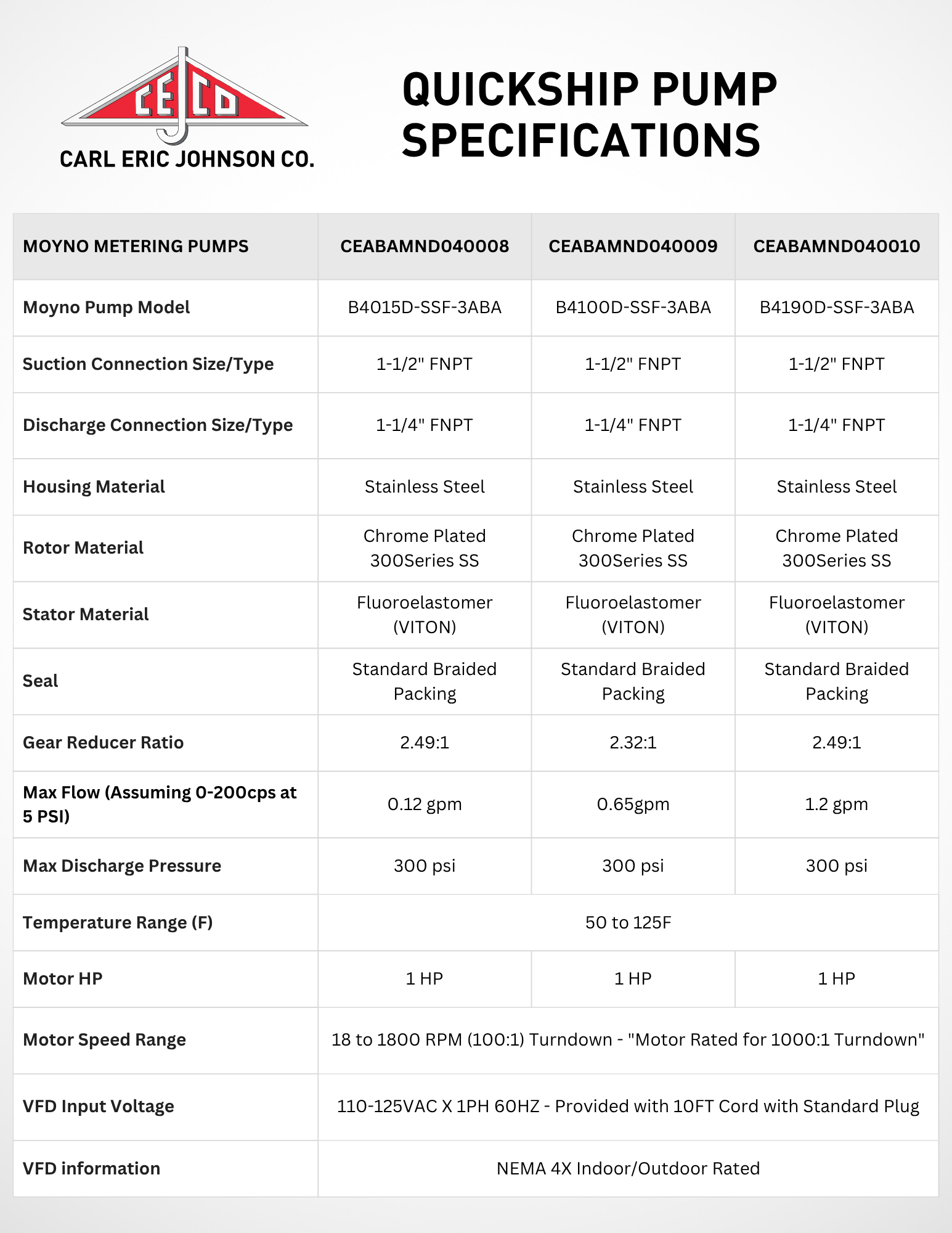

Features:
- Suction Connection Size: 1-1/2″ FNPT
- Discharge Connection Size: 1-1/4″ FNPT
- Housing Material: Stainless Steel
- Rotor Material: Chrome Plated 300 Series
- Stator Material: Fluoroelastomer (VITON)
- Max Flow: 0.65 GPM
- Max Discharge Pressure: 300 psi
- Temperature Range: 50 to 125F
- Motor Speed Range: 180 to 1800 RPM (10:1) Turndown
- VFD Information: NEMA 4X Indoor/Outdoor Rated
Applications:
- Chemical processing
- Pulp & paper
- Food & beverage
- Wastewater treatment
Length: 37.77″ | Height: 24″ | Width: 14″
