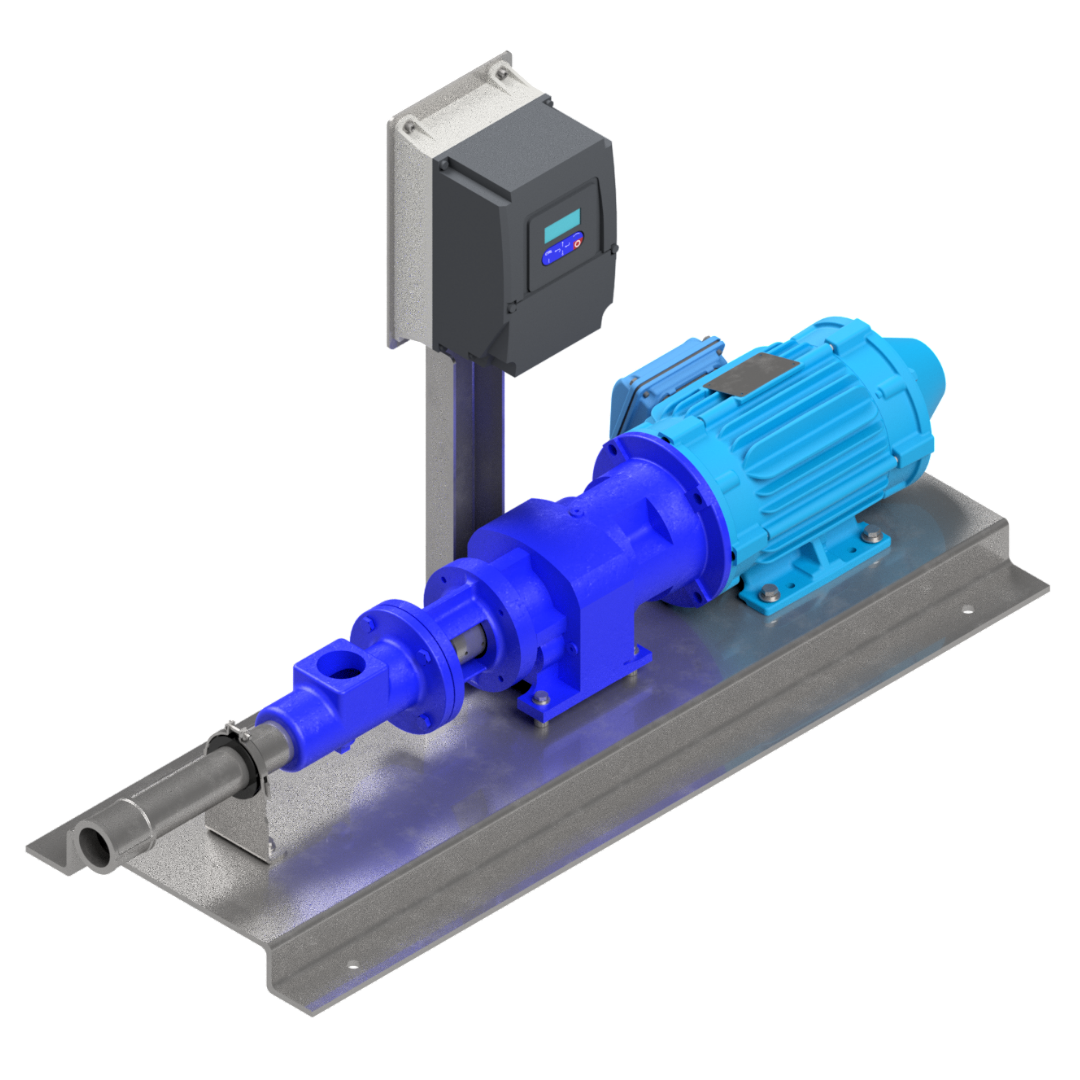

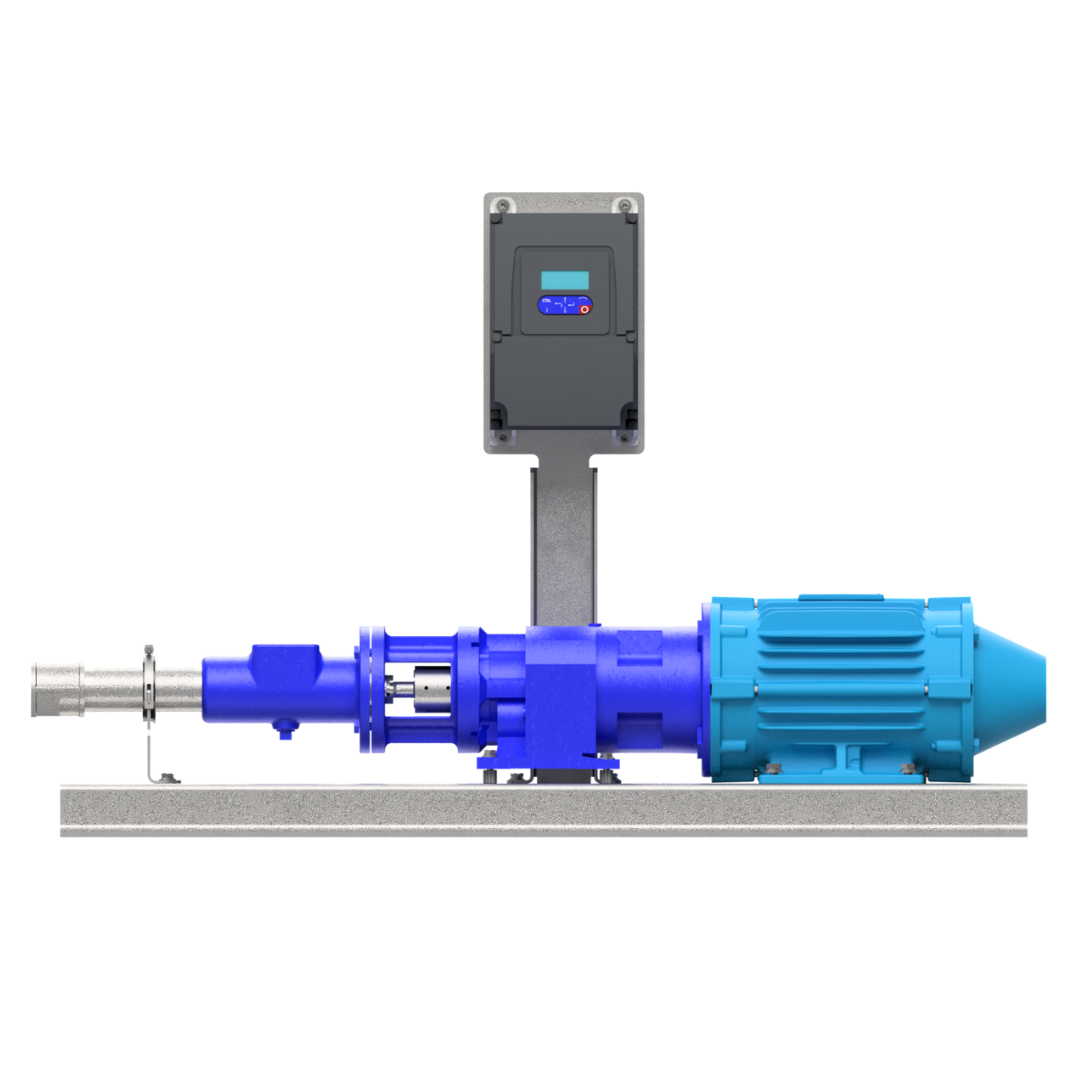

Moyno B4190D Metering Pump Unit

Motor and VFD Unit on Baseplate



Built for higher-capacity applications, the Moyno B4190D provides consistent, efficient fluid metering. Every unit is carefully assembled in-house on a base plate with both pump and motor included, delivering a ready-to-install solution.

Features:

  • Suction Connection Size: 1-1/2″ FNPT
  • Discharge Connection Size: 1-1/4″ FNPT
  • Housing Material: Stainless Steel
  • Rotor Material: Chrome Plated 300 Series
  • Stator Material: Fluoroelastomer (VITON)
  • Max Flow: 1.2 GPM
  • Max Discharge Pressure: 300 psi
  • Temperature Range: 50 to 125F
  • Motor Speed Range: 180 to 1800 RPM (10:1) Turndown
  • VFD Information: NEMA 4X Indoor/Outdoor Rated

Applications:
  • Chemical processing
  • Pulp & paper
  • Food & beverage
  • Wastewater treatment



Length: 40.33 ” | Height: 24″ | Width” 14″
