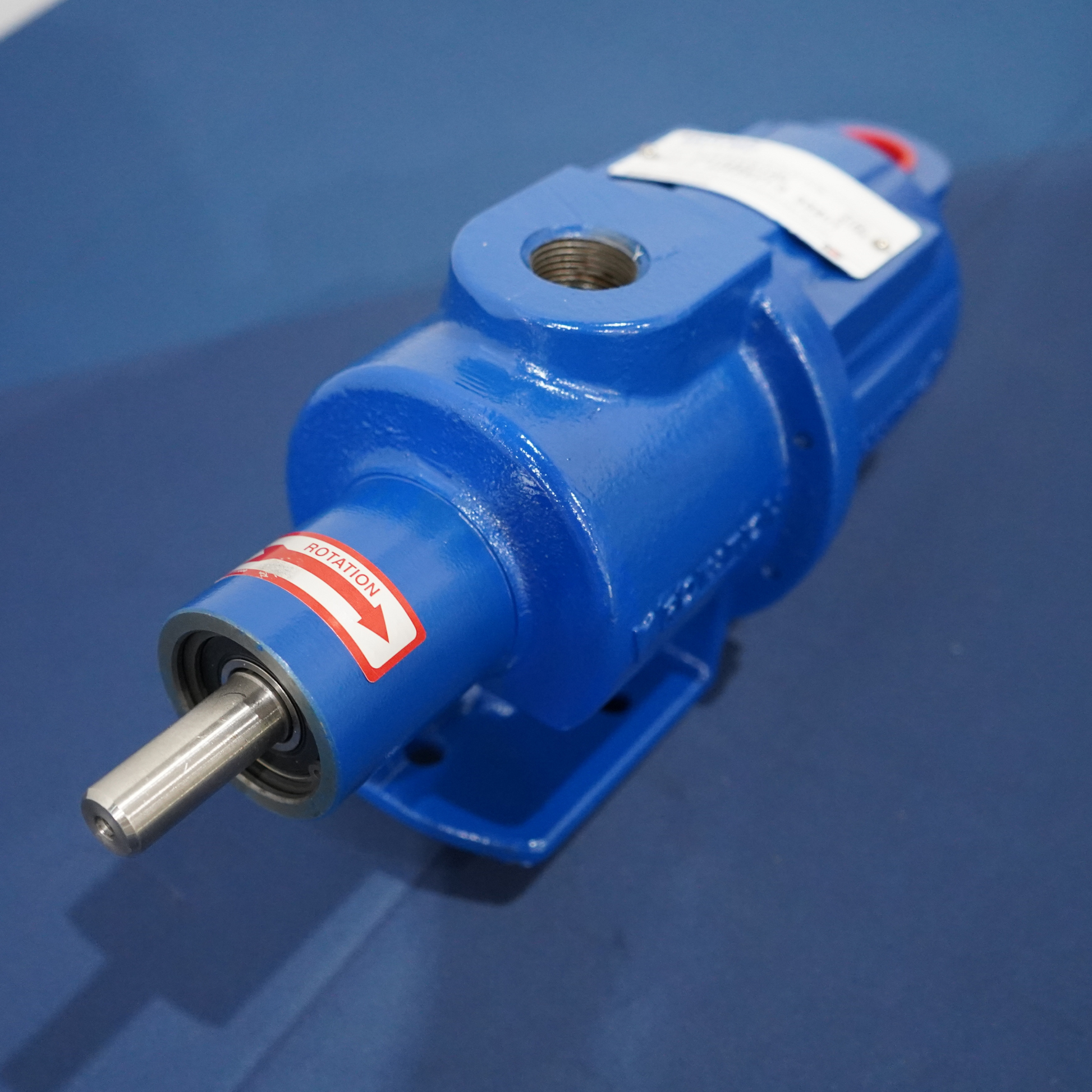

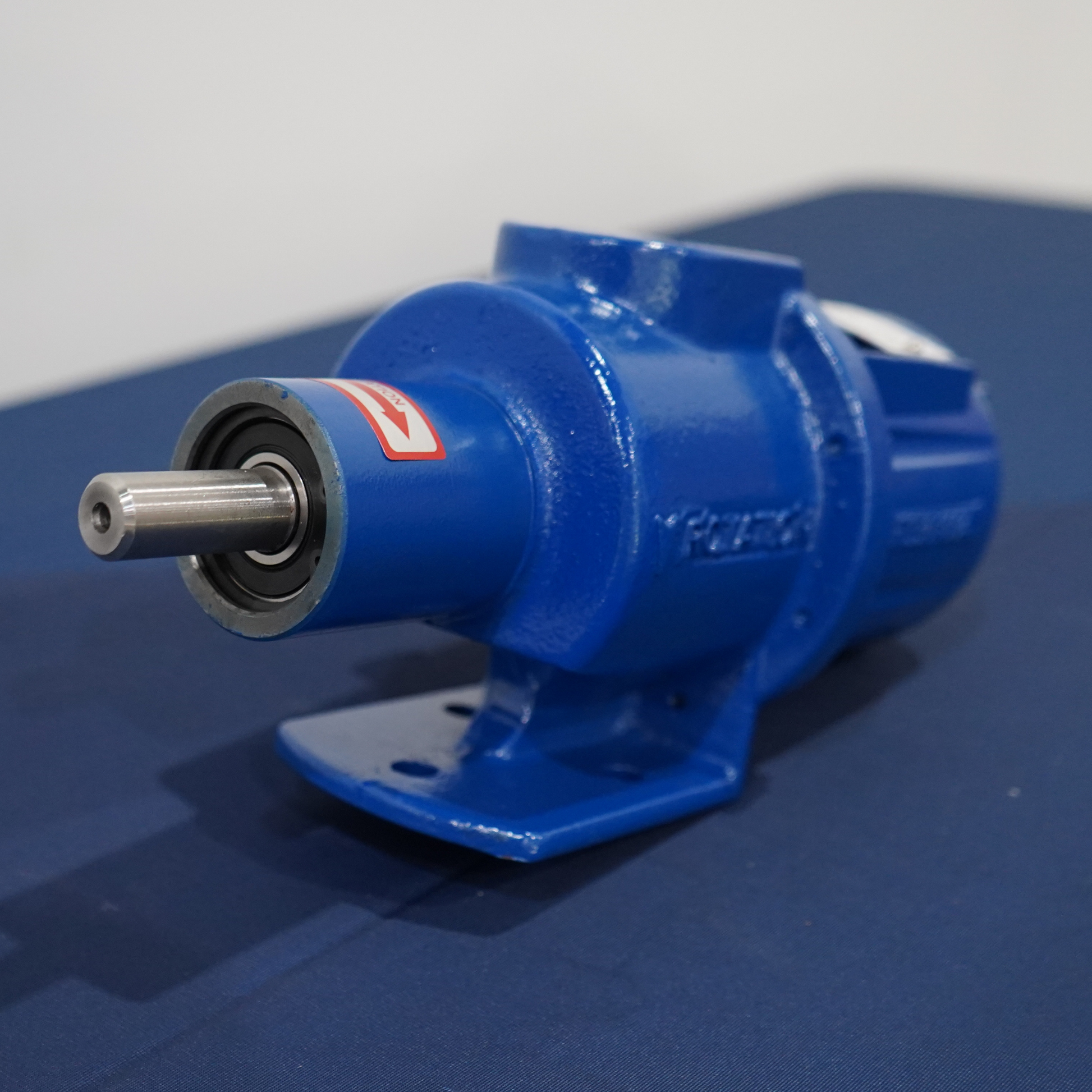

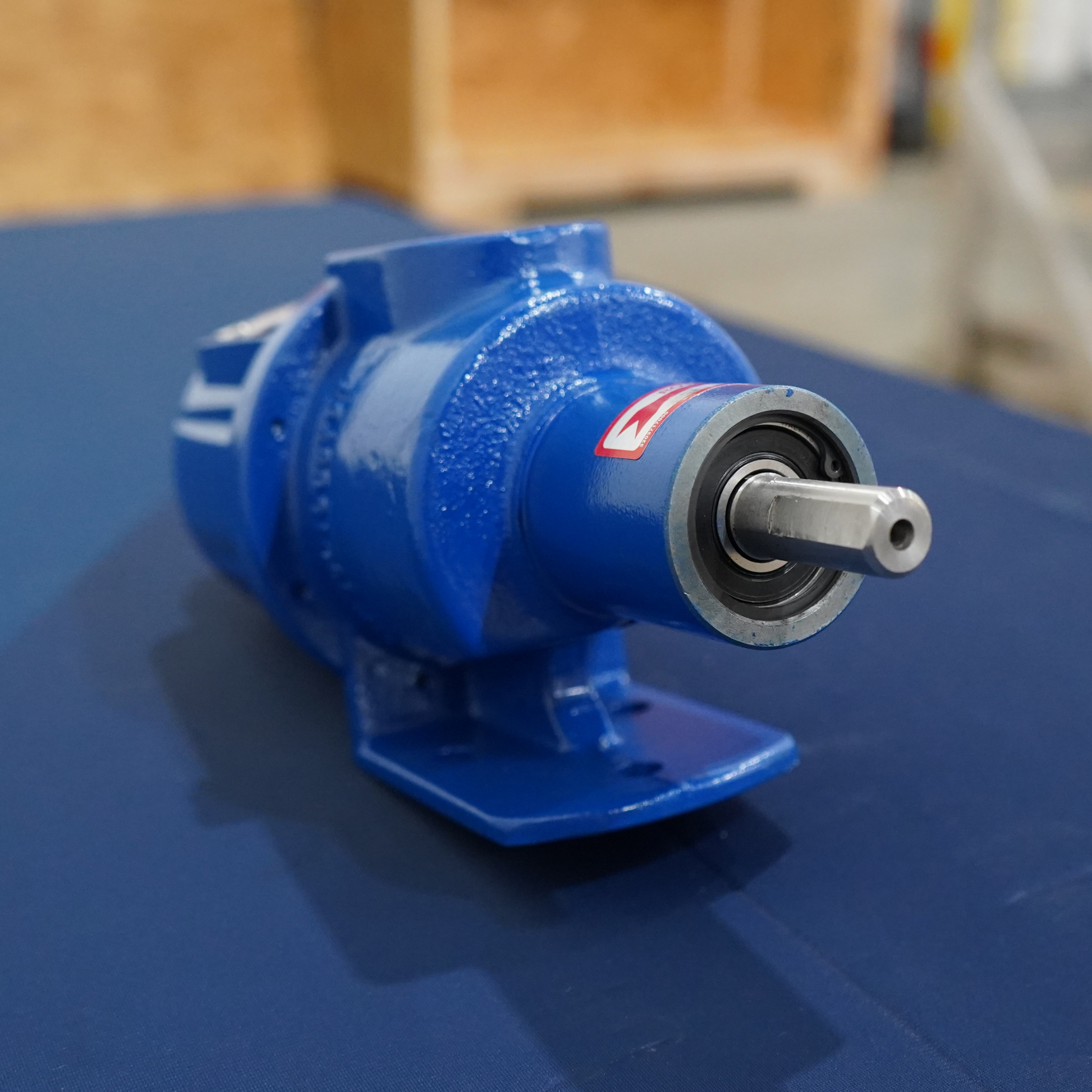

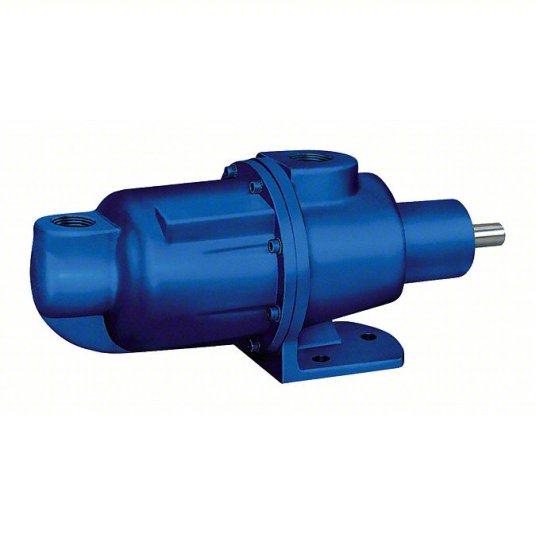

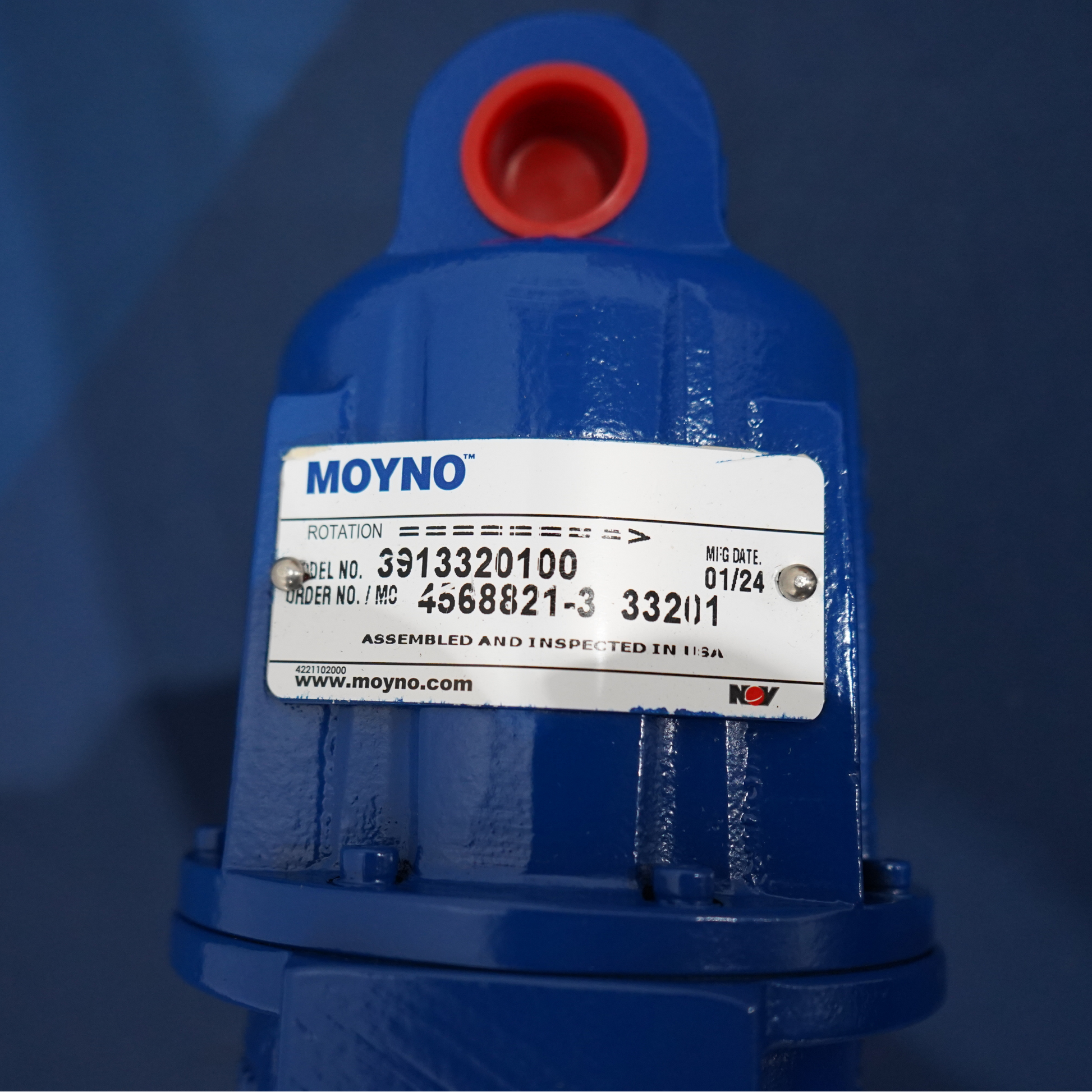

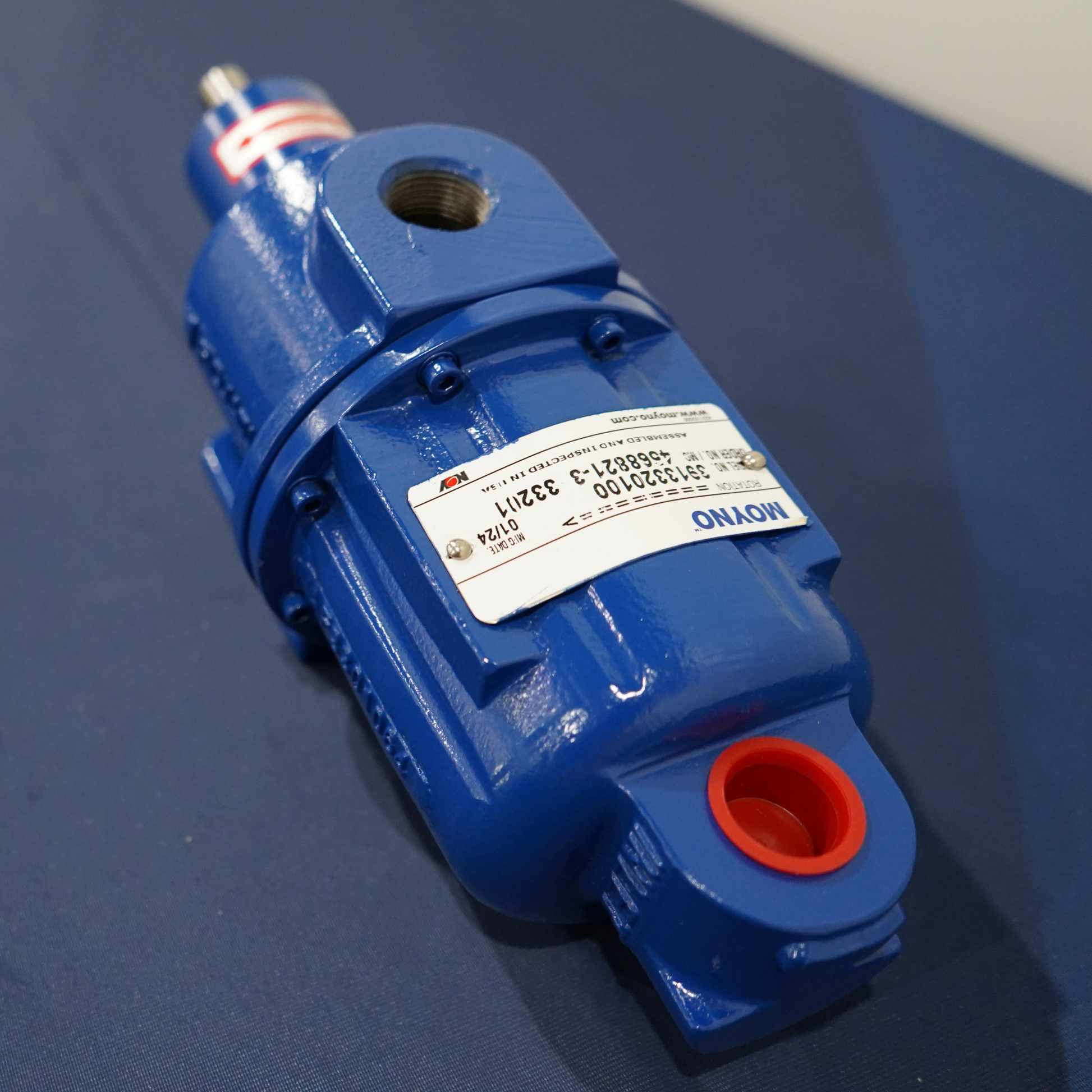

Moyno 33201

Product Overview:
This non-motorized progressive cavity pump is ideal for moving thick, high-viscosity fluids with low shear. Built with a cast iron housing, stainless steel rotor, and a Buna-N stator, this pedestal-style unit is designed for long-lasting, reliable performance in industrial applications.

Key Features:

Non-Motorized Design: Allows you to select and pair with a compatible motor (up to 1/2 HP) for your specific needs.

Efficient Fluid Handling: Progressive cavity design ensures smooth, pulseless flow with minimal agitation—perfect for shear-sensitive materials.

Durable Build: Constructed with a cast iron body and stainless steel rotor for enhanced corrosion resistance and durability.

Wide Temperature Range: Operates from 10°F to 160°F, suitable for many industrial fluid applications.

Sealing System: Includes a mechanical seal with carbon and ceramic components for dependable leak prevention.

Specifications:

Inlet/Outlet Size: 3/4 in. NPT (suction and discharge)

Flow Capability: Handles fluids with viscosities up to 20,000 cps

Max Discharge Pressure: 100 psi

Solids Handling: Up to 4 mm diameter

Operating Speed: 150 – 1,750 RPM

Overall Dimensions: 12.6" L x 5.1" H x 4.8" W

Typical Applications:

Food processing

Wastewater treatment

Chemical transfer

Industrial coatings and adhesives

Note: Motor not included. Be sure to pair with a compatible motor for optimal operation.
